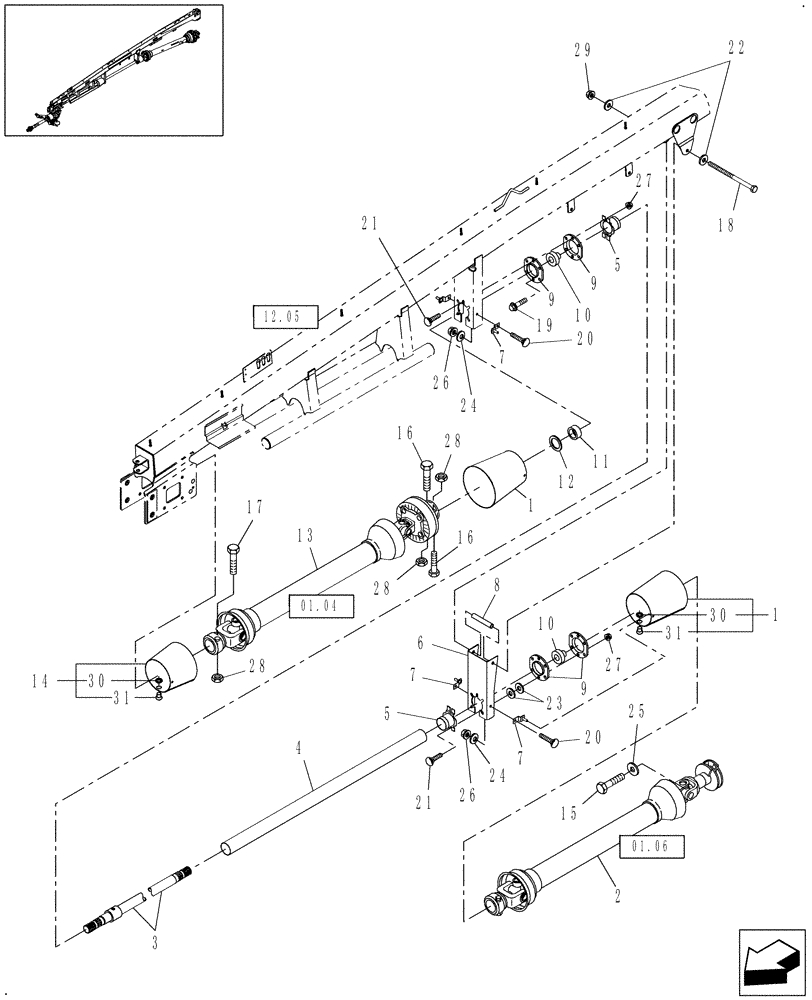

Запчасти Case IH DC162 (01.03) - TONGUE DRIVELINE COMPONENTS (01) - PTO DRIVE SHAFT

1

86532561

SHIELD

Includes Ref. 30 & 31

2шт.

2

0C

ORDER COMPONENTS

Secondary PTO

1шт.

3

86566058

SHAFT

1шт.

4

86574271

SHIELD

1шт.

5

86615925

BRACKET

Includes: Foam Tape

2шт.

5

853891

TAPE

Tape, Black Vinyl Foam, 3" x 144" -, Serial Range: Cut-Fit

1шт.

6

86617578

SUPPORT

1шт.

7

86575697

BRACKET

4шт.

8

86541412

SPACER

1шт.

9

86629969

FLANGE

4шт.

10

86552016

BALL BEARING,38.1mm ID x 80mm OD x 21.01mm W

2шт.

11

86558630

SPACER

1шт.

12

58630

WASHER,.0299" Thk

3шт.

13

0C

ORDER COMPONENTS

Intermediate PTO w/Clutch

1шт.

14

86549399

SHIELD

Includes: Washers (Ref. 30) & Rivets (Ref.31)

1шт.

15

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

16

281058

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

17

280620

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

18

280743

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.

19

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

20

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

21

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

11шт.

22

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

23

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1шт.

26

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

27

86521607

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

28

88871

NUT,1/2"-13, GC

4шт.

29

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

30

88055

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

Copper, #10

11шт.

31

86520136

RIVET,Aluminum, .196” Dia

3/16" x .565

11шт.
