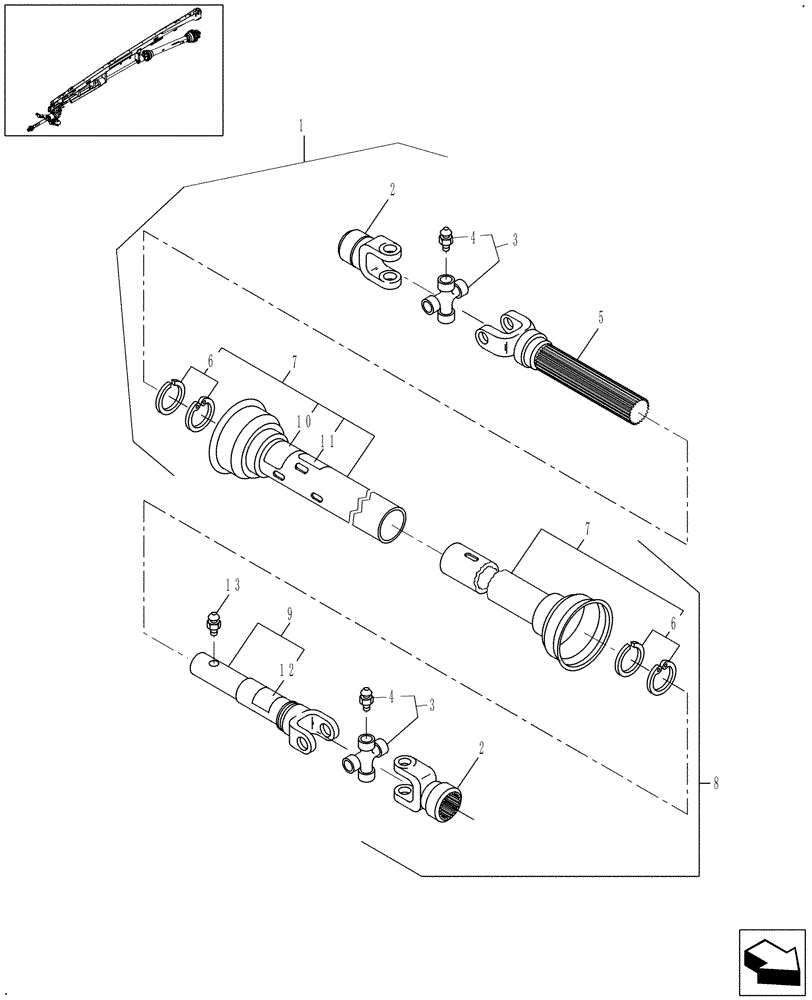

Запчасти Case IH DC162 (01.02) - 2-PT SWIVEL PTO COMPONENTS (01) - PTO DRIVE SHAFT

1

87345107

FRONT PTO ASSY

Half Components, 1-3/8", Includes: Ref. 2-7, 14 & 15

1шт.

1

87345105

FRONT PTO ASSY

Half, 1-3/4", Includes Ref. 2-7, 10 & 11, Option

1шт.

2

86560318

YOKE

Front Lock Assy., 1-3/8"

2шт.

2

86534533

REPAIR KIT

Auto-Lok, 1-3/8"

1шт.

2

87737194

YOKE

Front, 1-3/4", Option

1шт.

2

86539714

REPAIR KIT

Safety Lock, 1-3/4", Option

1шт.

3

86520896

BEARING ASSY

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

2шт.

5

86560319

YOKE

& Shaft

1шт.

6

87050379

REPAIR KIT

Nylon Bearing, Services Ref. 7 & 10

2шт.

7

87345115

GUARD

Set, Plastic, Includes: Inner & Outer Shields, Plus Ref. 14 & 15

1шт.

8

87345104

REAR PTO ASSY

Components, 1-3/8", Includes: Ref. 2, 3, 4, 6, 10, 11, 16 & 17

1шт.

9

86560322

YOKE

Tube & Sleeve

1шт.

10

849471

DANGER DECAL

Rotating Driveline, English

1шт.

10

849482

DANGER DECAL

Rotating Driveline, French

1шт.

10

9801260

DANGER DECAL

DANGER, Rotating Driveline - Spanish

1шт.

11

86593134

DECAL

Lube, English

1шт.

11

86593136

DECAL

Lube, French

1шт.

11

86593135

DECAL

Lube, Spanish

1шт.

12

849472

DANGER DECAL

Shield Missing, English

1шт.

12

849483

DANGER DECAL

Shield Missing, French

1шт.

12

9801256

DANGER DECAL

DANGER, Shield Missing, Spanish

1шт.

13

86542773

LUBE NIPPLE

Press Fit

1шт.
