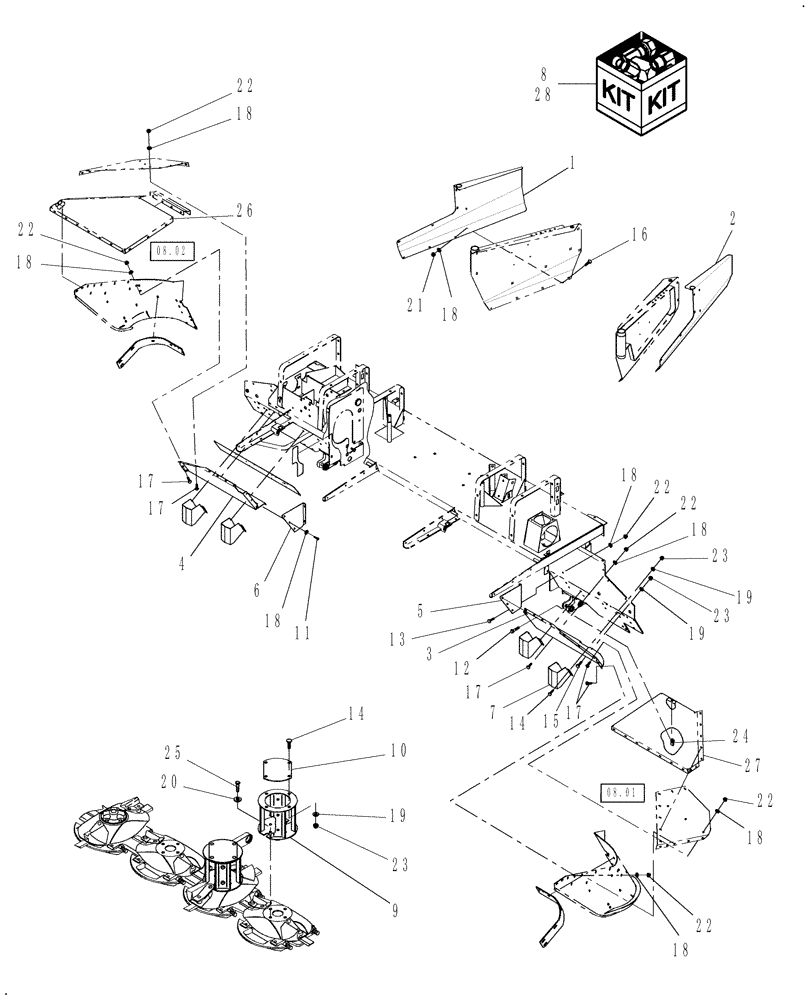

Запчасти Case IH DC162 (18.07) - TALL CROP KIT Attachments

1

87044875

EXTENSION

Extension, Right Hand

1шт.

2

87044874

EXTENSION

Extension, Left Hand

1шт.

3

87047929

FILLER

Filler, Left Hand

1шт.

4

87047930

FILLER

Filler, Right Hand

1шт.

5

87047924

PLATE

Plate, Left Hand

1шт.

6

87047925

PLATE

Plate, Right Hand

1шт.

7

87047928

GUIDE

Guide

4шт.

8

87528440

KIT

Cane Paddle; For Component Breakdown, See Fig. 18.05

2шт.

9

87040772

DRUM

4шт.

10

86631895

COVER

2шт.

11

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

12

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

13

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

16шт.

15

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

2шт.

16

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

6шт.

17

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

16шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

32шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

20

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

21

86624020

FLANGE NUT,Flg, 1/4"-20.G5

6шт.

22

86521605

FLANGE NUT,5/16"-18, Cl 5

20шт.

23

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

18шт.

24

9626645

NUT

8шт.

25

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

26

86581729

PIN

Support, Right Hand

1шт.

27

86581746

BRACKET

Support, Left Hand

1шт.

28

87058701

DIA KIT, HARVESTER

Kit, Tall Crop; Includes: Ref.s 1 Thru 27

1шт.
