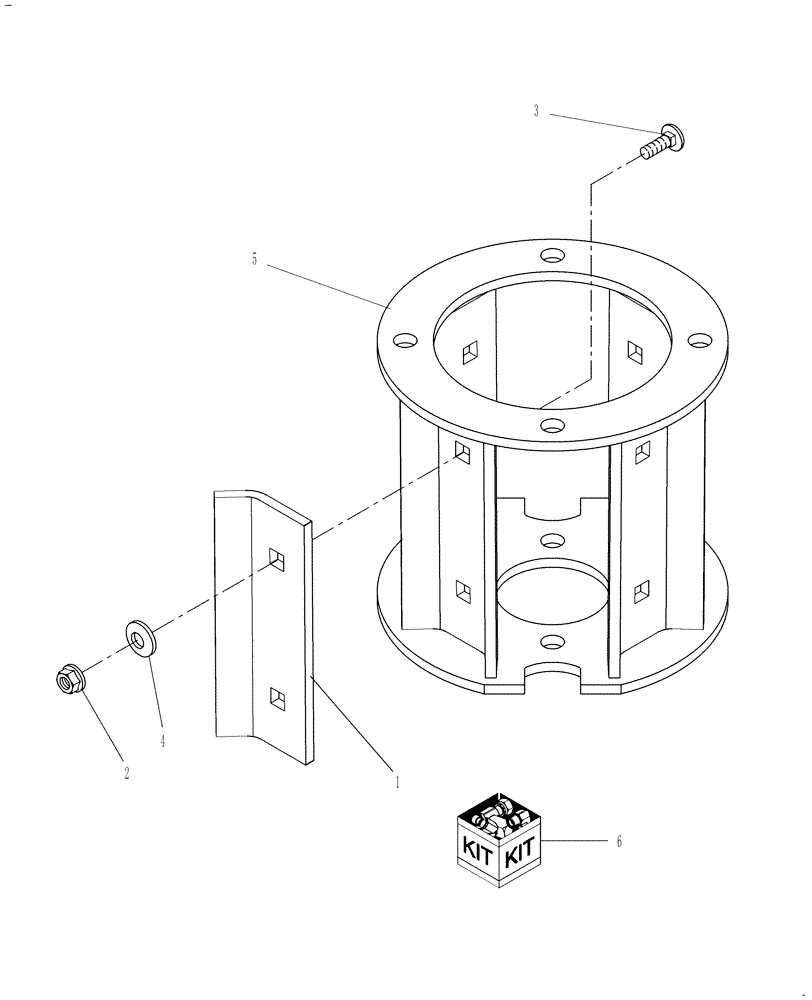

Запчасти Case IH DC162 (18.05) - CANE PADDLE KIT Attachments

1

NS

NOT SERVICED

Paddle

4шт.

2

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

3

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

5

87040772

DRUM

Short

1шт.

Not part of kit.

1шт.

6

87528440

KIT

Includes: Ref. 1 thru 4

1шт.
