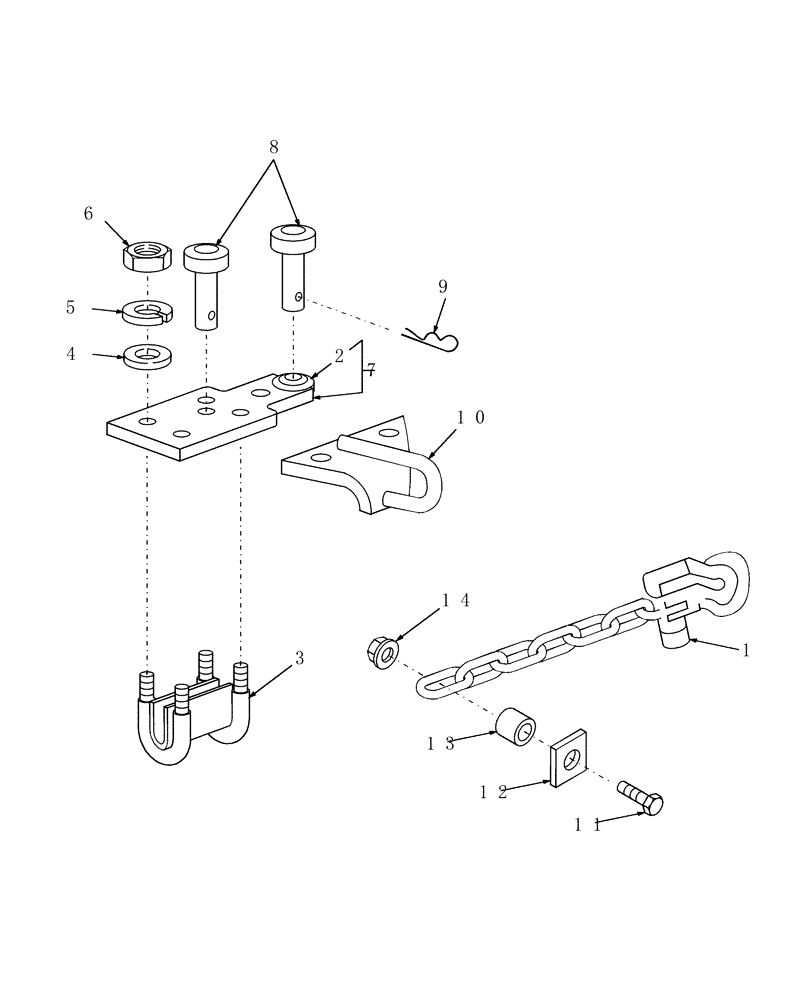

Запчасти Case IH SCX100 (12.08) - HITCH EXTENSION & SAFETY CHAIN (12) - MAIN FRAME

1

850116

CHAIN

Safety

1шт.

2

540137

BALL JOINT

(Weld On)

1шт.

3

86626519

CLAMP

1шт.

4

495-11081

WASHER,3/4", SAE

4шт.

5

492-11075

LOCK WASHER,3/4"

4шт.

6

425-1012

NUT,3/4"-10, G5

4шт.

7

86626517

PLATE

1шт.

8

846927

PIN

2шт.

9

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

2шт.

10

86626521

CHAIN (AG)

1шт.

11

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

12

87587325

PLATE

Plate

1шт.

13

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

14

85700693

NUT,5/8" - 11, Gr C

1шт.
