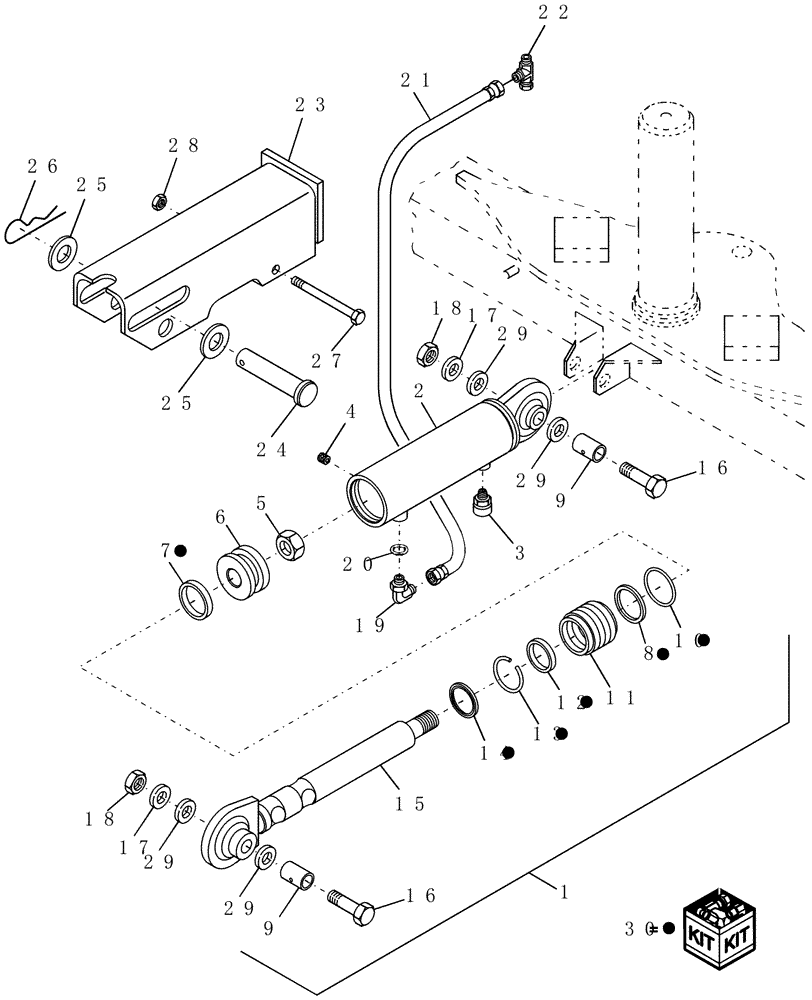

Запчасти Case IH SCX100 (12.07) - HEADER TILT, HYDRAULIC (12) - MAIN FRAME

1

86631523

CYLINDER

Hydraulic, Includes: Ref. 2 - 8 & 10 - 15

1шт.

Prior to PIN HCA0017324

1шт.

1

87018045

HYDRAULIC CYLINDER

Monarch, Includes: Ref's 2, 3, 5 - 8, 10 - 12, 14 & 15

1шт.

From PIN HCA0017324

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

854071

BREATHER

1шт.

4

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

5

280724

LOCK NUT,3/4" - 16

1шт.

6

9849917

PISTON

1шт.

Prior to PIN HCA0017324

1шт.

6

87025737

PISTON

1шт.

From PIN HCA0017324

1шт.

7

86553483

SEAL

3 Piece, Piston

1шт.

8

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

9

87033961

BUSHING

2шт.

10

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

11

785811

CYLINDER HEAD

1шт.

Prior to PIN HCA0017324

1шт.

11

87025720

HEAD

1шт.

From PIN HCA0017324

1шт.

12

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

13

512016

SNAP RING

Int, 2.125"

1шт.

Prior to PIN HCA0017324

1шт.

14

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

15

86609071

PISTON ROD/GLAND

1шт.

Prior to PIN HCA0017324

1шт.

15

87026072

PISTON ROD

1шт.

From PIN HCA0017324

1шт.

16

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

17

492-11075

LOCK WASHER,3/4"

2шт.

18

425-1012

NUT,3/4"-10, G5

2шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

21

9621424

HOSE,9.52 mm ID x 736.60 mm

1шт.

22

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

23

86615562

CHANNEL

1шт.

24

86510381

PIN

1шт.

25

495-21081

WASHER,3/4"

2шт.

26

86000109

COTTER PIN

1/8" Thk x 3-1/4" L

1шт.

27

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

28

280736

NUT,5/16"-18, GC

1шт.

29

86617511

WASHER,19.84mm ID x 38.1mm OD x 4.78mm Thk

4шт.

30

86603982

SEAL KIT

Includes: Ref's 7, 8, 10, 12, 13, 14

1шт.

Prior to PIN HCA0017324

1шт.

30

87025441

SEAL KIT

Kit, Includes: Ref's 7, 8, 10, 12, & 14

1шт.

From PIN HCA0017324

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
