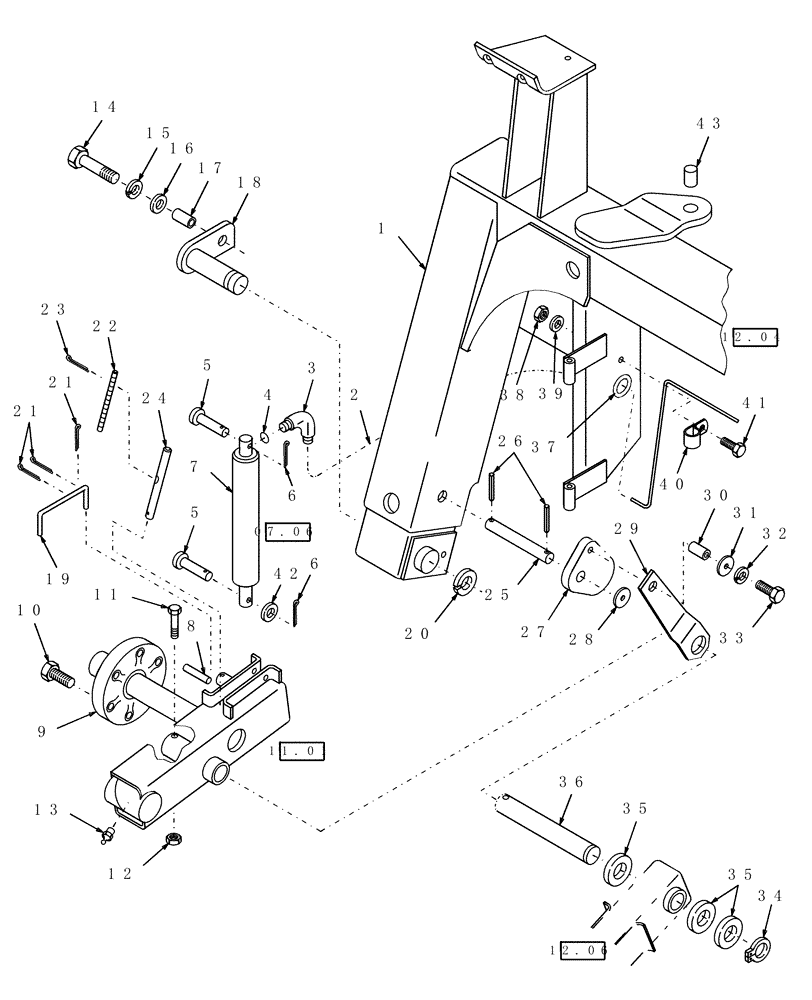

Запчасти Case IH SCX100 (12.05) - FRAME, RH (12) - MAIN FRAME

1

86632677

FRAME ASSY

1шт.

2

86514945

HOSE,0.38" ID x 18.00", SAE J516

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

3/8" Tube, Includes: Ref. 4

1шт.

5

86529064

PIN

2шт.

6

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

7

86627756

HYDRAULIC CYLINDER

Slave

1шт.

Prior to PIN HCA0017070

1шт.

7

87573687R

REMAN-HYD CYLINDER

SCX100 PRIOR TO PIN HCA0017070 (9/01-9/08), Reman for New P/N 86627756

1шт.

87573687C

CORE-HYD CYLINDER

Return Number

1шт.

7

87573687

HYDRAULIC CYLINDER,28.7mm Rod, 251.71mm Stroke

Cylinder, Slave, Monarch

1шт.

After PIN HCA0017071

1шт.

7

87573687R

REMAN-HYD CYLINDER

SCX100 (9/01-9/08)

1шт.

87573687C

CORE-HYD CYLINDER

Return Number

1шт.

8

86546360

PIN

1шт.

9

0C

ORDER COMPONENTS

Hub & Spindle

1шт.

10

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

6шт.

11

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

12

232-4146

NUT,3/8"-16, GC

1шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

16

495-21056

WASHER,1/2"

1шт.

17

167381

SPACER

1шт.

18

86632707

PIN,60.1mm OD x 191.35mm L

1шт.

19

86515601

PIN

1шт.

20

100-11250

SNAP RING,#250, Ext

1шт.

21

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.

22

86539129

SPRING

1шт.

23

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

24

86632703

ROD

1шт.

25

86517430

PIN

1шт.

26

435-51024

GROOVED PIN,5/16" x 1 1/2", Type E

2шт.

27

86632711

CAM

1шт.

28

495-11106

WASHER,1", SAE

1шт.

29

86632710

CONNECTING LINK

1шт.

30

53978

SPACER

1шт.

31

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

32

492-11062

BEARING WASHER,5/8"

1шт.

33

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

34

100-16175

SNAP RING,#175, Ext

1шт.

35

238113

WASHER

1шт.

36

86632709

PIN,44.45mm OD x 310mm L

1шт.

37

574820

GROMMET

1шт.

38

425-106

NUT,3/8"-16, Cl 5

1шт.

39

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

40

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

41

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

1шт.

42

495-11066

WASHER,5/8", SAE

1шт.

43

787219

SLEEVE

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
