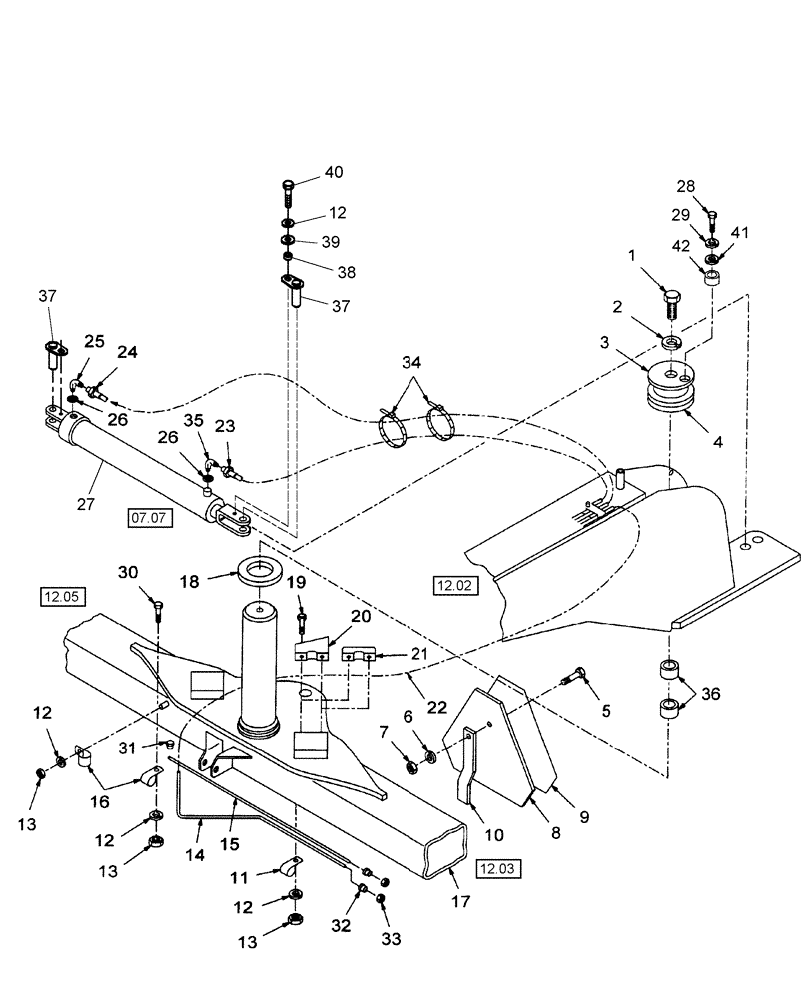

Запчасти Case IH SCX100 (12.04) - FRAME, CENTER (12) - MAIN FRAME

1

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

2

492-11075

LOCK WASHER,3/4"

1шт.

3

86593896

WASHER

1шт.

4

86510725

WASHER

1шт.

5

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

6

492-11010

LOCK WASHER,#10

2шт.

7

225-14110

NUT,#10-24

2шт.

8

86547710

EMBLEM

KIT SMV, Includes: Ref. 9

1шт.

9

86547711

DECAL,SMV

SMV

1шт.

10

195035

SUPPORT

SMV

1шт.

11

605025

CLAMP,3/8", Coated, 3/8" Bolt

3шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.

14

86514934

TUBE,9.52 mm OD

85.31" L, Includes: Sleeves & Nuts

1шт.

15

86514935

HYD TUBE,9.52 mm OD

123.28" L, Includes: Sleeves & Nuts

1шт.

16

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

17

86632677

FRAME ASSY

1шт.

18

86510727

WASHER

1шт.

19

61-33112

HEX SOC SCREW,5/16"-18 x 3/4"

4шт.

20

86510955

STOP

14' Header Only

2шт.

21

784173

STOP

16' and 18' Headers Only

2шт.

22

86514941

HOSE,0.38" ID x 39.50", SAE J516

1шт.

23

86514943

HOSE,0.38" ID x 42.00", SAE J516

1шт.

24

86514942

HOSE,0.38" ID x 58.00", SAE J516

1шт.

25

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 26

1шт.

27

86630071

HYDRAULIC CYLINDER

Swing, Includes: Ref. 41 & 42

1шт.

Prior to PIN HAJ0012101

1шт.

Refer to component breakdown

1шт.

87515542R

REMAN-HYD CYLINDER

SCX100 (9/01-9/08), Reman for New P/N 86630071

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

27

86643606

HYDRAULIC CYLINDER

Swing

1шт.

After PIN HAJ0012101

1шт.

Refer to component breakdown

1шт.

87515542R

REMAN-HYD CYLINDER

SCX100 (9/01-9/08), Reman for New P/N 86643606

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

27

87018098

HYDRAULIC CYLINDER

Monarch

1шт.

After PIN HCA0017109

1шт.

Refer to component breakdown

1шт.

87515542R

REMAN-HYD CYLINDER

SCX100 (9/01-9/08), Reman for New P/N 87018098

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

28

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

29

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

30

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

31

218-774

PLUG,9/16"-18, 37 Degree

1шт.

32

218-363

SLEEVE,37 Degree, 3/8" Tube

2шт.

33

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

34

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

35

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 26

1шт.

36

86515632

DRIVE BUSHING,102.13mm ID x 114.25mm OD x 76.2mm L

2шт.

37

86603686

PIN,25.4mm OD x 90mm L

2шт.

38

103060

BUSHING,9.85mm ID x 15.95mm OD x 7.1mm Thk

2шт.

39

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

2шт.

40

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

41

495-11053

WASHER,1/2", SAE

1шт.

42

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
