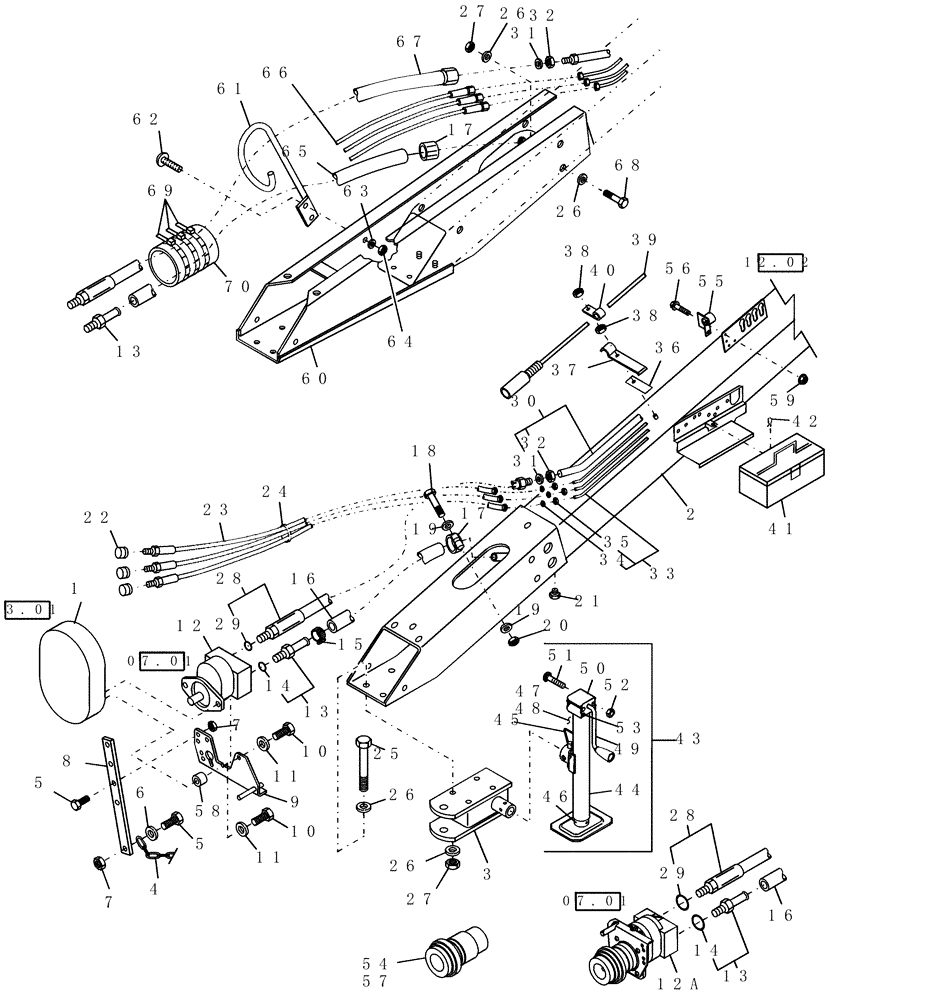

Запчасти Case IH SCX100 (12.01) - TONGUE, FRONT (12) - MAIN FRAME

1

86518972

GEARBOX

540 RPM

1шт.

1

86518972R

REMAN-GEARBOX

SCX100

1шт.

1

86518972C

CORE-GEARBOX

Return Number

1шт.

2

86632676

TOW BAR

Includes: Decals

1шт.

3

86626506

HITCH ASSY

1шт.

4

86527908

CHAIN

18 Links

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

6

495-21056

WASHER,1/2"

1шт.

7

232-4148

NUT,1/2"-13, GC

3шт.

8

86626523

ARM

1шт.

9

86626508

BRACKET

1шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

11

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

12

86518974

HYDRAULIC PUMP

540 RPM

1шт.

12a

87397342

HYDRAULIC PUMP

1000 RPM, Direct Drive, (Does not include coupler, Ref. 57)

1шт.

87397342C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

86544161

FITTING,1 1/4" Hose X 1 5/8"-12 ORB, Beaded

Hose

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

15

82012725

HOSE CLAMP,#44, M32-44

1шт.

16

86563731

HOSE,31.75mm ID x 1117.6mm L

Suction, 14' & 16' Headers Only

1шт.

17

851281

CLAMP

1шт.

18

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

19

495-11034

WASHER,5/16", SAE

2шт.

20

280736

NUT,5/16"-18, GC

1шт.

21

9823253

MAGNETIC PLUG

1шт.

22

116070

CAP

Oil Drain

3шт.

23

86514940

HOSE,25.4mm ID x 1879.6mm L

14' & 16' Headers Only

3шт.

24

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

25

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

26

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

1шт.

27

425-1010

NUT,5/8"-11, G5

1шт.

28

86563730

FLEXIBLE HOSE,25.4mm ID x 1143mm L, SAE 100R12

Pressure, 14' & 16' Headers Only

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

30

86514931

HYD TUBE,25.40 mm OD x 6671.6, 95.8 mm L

1шт.

31

218-368

SLEEVE,37 Degree, 1" Tube

1шт.

32

86513086

TUBE NUT,1-5/16"-12, 37 Degree Fl, Type B

Includes: O-Ring

1шт.

33

86514932

HYD TUBE

3шт.

34

218-363

SLEEVE,37 Degree, 3/8" Tube

6шт.

35

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

6шт.

36

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

1шт.

37

769000

CLAMP

1шт.

38

232-4146

NUT,3/8"-16, GC

16шт.

39

86560342

WIRE HARNESS

See Fig. 06.01 for Breakdown

1шт.

40

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

41

5135060

TOOL BOX

1шт.

42

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

1шт.

43

86617866

JACK

1шт.

44

NSS

NOT SOLD SEPARAT

Tube, Outer

1шт.

45

86590810

KIT

Pin & Chain

1шт.

46

NSS

NOT SOLD SEPARAT

Tube, Inner

1шт.

47

86590811

KIT

Gear

1шт.

48

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing

1шт.

49

86590812

KIT

Crank

1шт.

50

86590816

COVER

Gearbox

1шт.

51

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

52

425-104

NUT,1/4"-20, Cl 5

1шт.

53

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

54

87028397

COUPLING

OD Fit, Splined, 1-3/8" Dia.

1шт.

55

9611467

HOLDER

1шт.

56

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

57

86565411

COUPLING

Splined, 1-3/4" Dia.

1шт.

58

86596036

BUSHING,13.51mm ID x 19.05mm OD x 9.53mm L

1шт.

59

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

60

86510888

EXTENSION

Extension

1шт.

18' Headers Only

1шт.

61

86524363

SUPPORT

Support

1шт.

18' Headers Only

1шт.

62

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

18' Headers Only

1шт.

63

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

18' Headers Only

1шт.

64

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

18' Headers Only

1шт.

65

86563733

HOSE,31.75mm ID x 1727.2mm L, SAE 100R4

Suction

1шт.

18' Headers Only

1шт.

66

86523530

HOSE,0.38" ID x 97.00", SAE J516

3шт.

18' Headers Only

1шт.

67

86563732

FLEXIBLE HOSE,25.4mm ID x 1752.6mm L, SAE 100R12

Pressure

1шт.

18' Headers Only

1шт.

68

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

18' Headers Only

1шт.

69

527350

STRAP

1шт.

70

86571435

SLEEVE

1шт.
