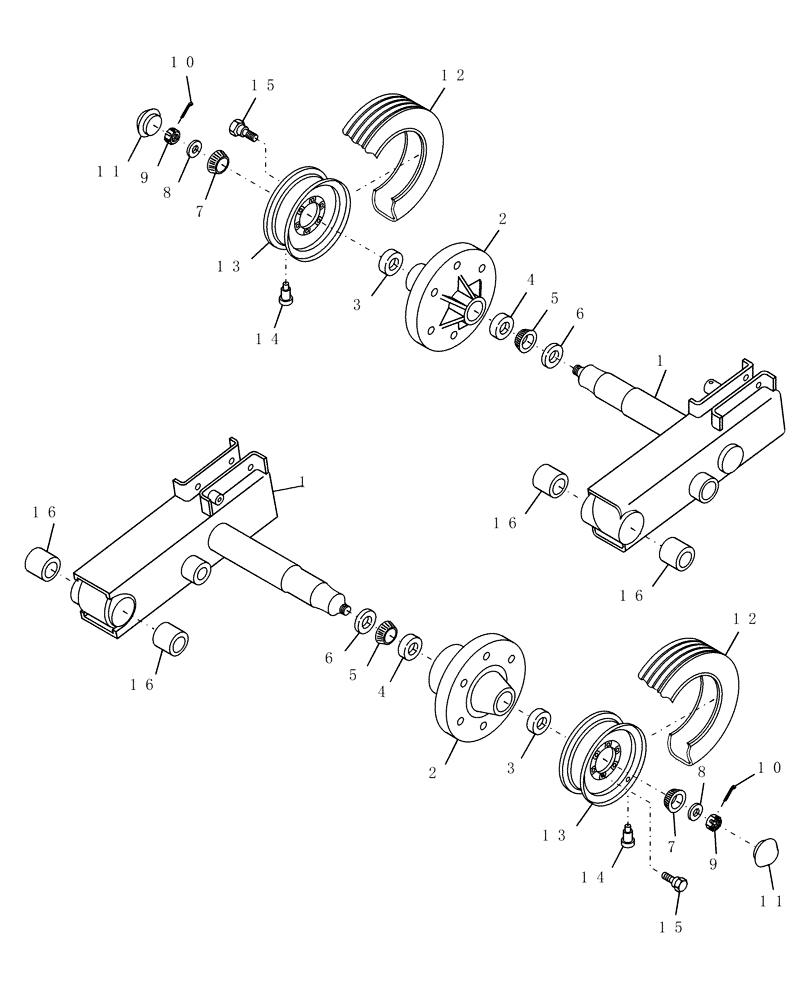

Запчасти Case IH SCX100 (11.01) - HUB, SPINDLE, TIRES & WHEELS (11) - WHEELS

1

86632679

ARM ASSY.

LH, Includes: Ref. 16

1шт.

86632681

ARM ASSY.

RH, Includes: Ref. 16

1шт.

2

86632701

HUB

2шт.

3

175508

BEARING CUP,59.16mm OD x 11.94mm W

2шт.

4

199955

BEARING CUP,82mm OD x 17mm W

2шт.

5

199954

BEARING CONE,50mm ID x 21.5mm W

Cone

2шт.

6

245856

OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk

2шт.

7

175507

BEARING CONE,35 mm ID x 16.764 mm

2шт.

8

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

M23

2шт.

9

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

10

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

11

249128

HUB CAP

2шт.

12

86564435

TYRE/TIRE

Tubeless, 31 x 13.50 - 15 Terra Rib, 8 Ply

2шт.

13

86621298

WHEEL

2шт.

14

387897R91

VALVE STEM

2шт.

15

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

16

575789

DRIVE BUSHING,64.01mm ID x 70.31mm OD x 44.45mm L

4шт.

87298567

KIT

Wheel Bearing Kit / Ship Direct Option

1шт.

Includes: 3 - 11

1шт.
