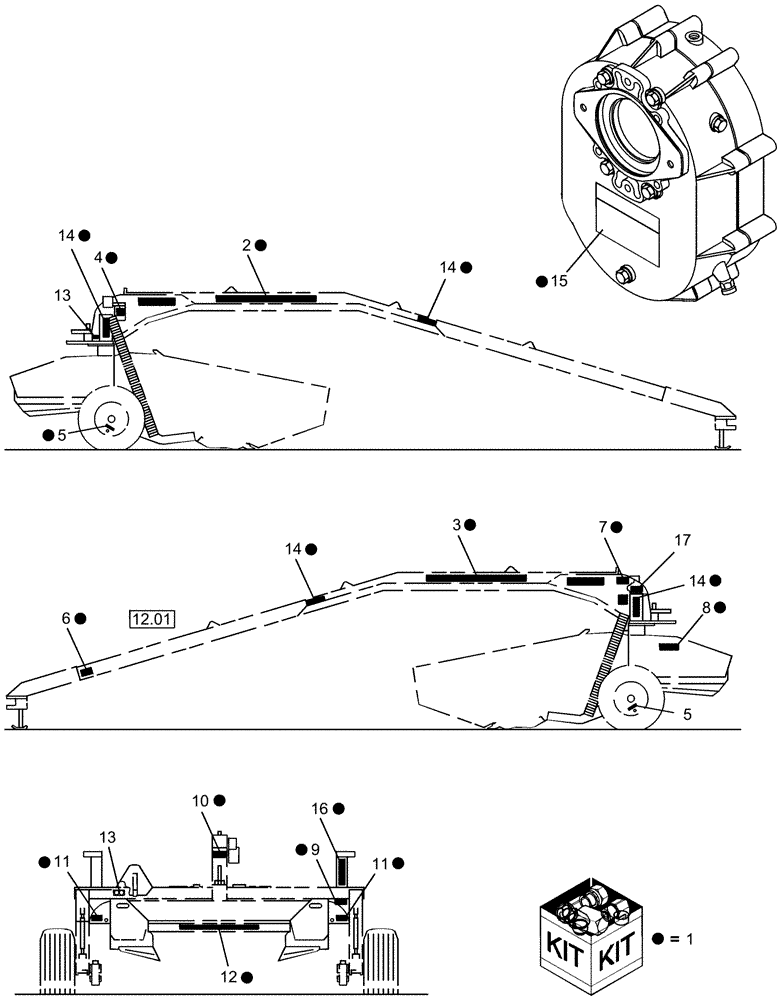

Запчасти Case IH SCX100 (08.01) - DECALS, TONGUE & TRAIL FRAME (08) - SHEET METAL
№
Артикул
Название
Примечание
Количество
1
86617349
DECAL
Set, Includes: Sign Guide
1шт.
Prior to TY08
1шт.
1
87622968
DECAL
Set, Includes: Sign Guide
1шт.
TY08 & After
1шт.
2
86626409
DECAL
Case IH SCX100, RH
1шт.
Prior to TY08
1шт.
2
87622971
DECAL
Case IH SCX100, RH
1шт.
TY08 & After
1шт.
3
86626408
DECAL
Case IH SCX100, LH
1шт.
Prior to TY08
1шт.
3
87622970
DECAL
Case IH SCX100, LH
1шт.
TY08 & After
1шт.
4
86547781
REFLECTOR,RED
Red Retroreflective
1шт.
5
183155
DECAL
Torque - English
2шт.
5
602232
DECAL
Torque - French
2шт.
5
9804237
DECAL
Torque - Spanish
2шт.
6
86622073
WARNING DECAL
English
1шт.
6
86622074
WARNING DECAL
WARNING, French
1шт.
6
86622075
WARNING DECAL
Read Operators Manual - Spanish
1шт.
7
795709
DECAL
Attention - English
1шт.
8
NSS
NOT SOLD SEPARAT
Decal, ATTENTION
1шт.
9
86547783
REFLECTOR,Tape, Red Orange
Red/Orange Fluorescent
1шт.
10
770033
WARNING DECAL
Field/Transport Instructions - English
1шт.
10
782380
WARNING DECAL
Field/Transport Instructions - French
1шт.
11
86624774
DANGER DECAL
English
2шт.
11
86625174
DANGER DECAL
DANGER - French
2шт.
11
86625175
DANGER DECAL
DANGER, Spanish
2шт.
12
86624776
DECAL
CASE IH
1шт.
Prior to TY08
1шт.
12
87622972
DECAL
CASE IH
1шт.
TY08 & After
1шт.
13
NS
NOT SERVICED
PIN Plate
1шт.
Prior To PIN HCA0017303
1шт.
13
86598785
SELF-TAP SCREW
Rd Hd, Stainless Steel, #4 x 1/4"
2шт.
13
87041060
WARNING DECAL
Transport, English
1шт.
From PIN HCA0017303
1шт.
13
87042011
WARNING DECAL
WARNING, Transport, French
1шт.
From PIN HCA0017303
1шт.
13
87042012
WARNING DECAL
WARNING, Transport, Spanish
1шт.
From PIN HCA0017303
1шт.
14
86547782
REFLECTOR,YELLOW
Yellow Retro Reflective
4шт.
15
86537465
DECAL
DANGER, For 540 RPM Gearbox
1шт.
16
86547781
REFLECTOR,RED
Red, Retroreflective
1шт.
17
NS
NOT SERVICED
PIN Plate
1шт.
From PIN HCA0017303
1шт.
17
86598785
SELF-TAP SCREW
Rd Hd, Stainless Steel, #4 x 1/4"
2шт.
Выбрано товаров: 46
