Запчасти Case IH SCX100 (07.10) - PTO DRIVEN HYDRAULIC PUMP RETROFIT KIT (07) - HYDRAULICS

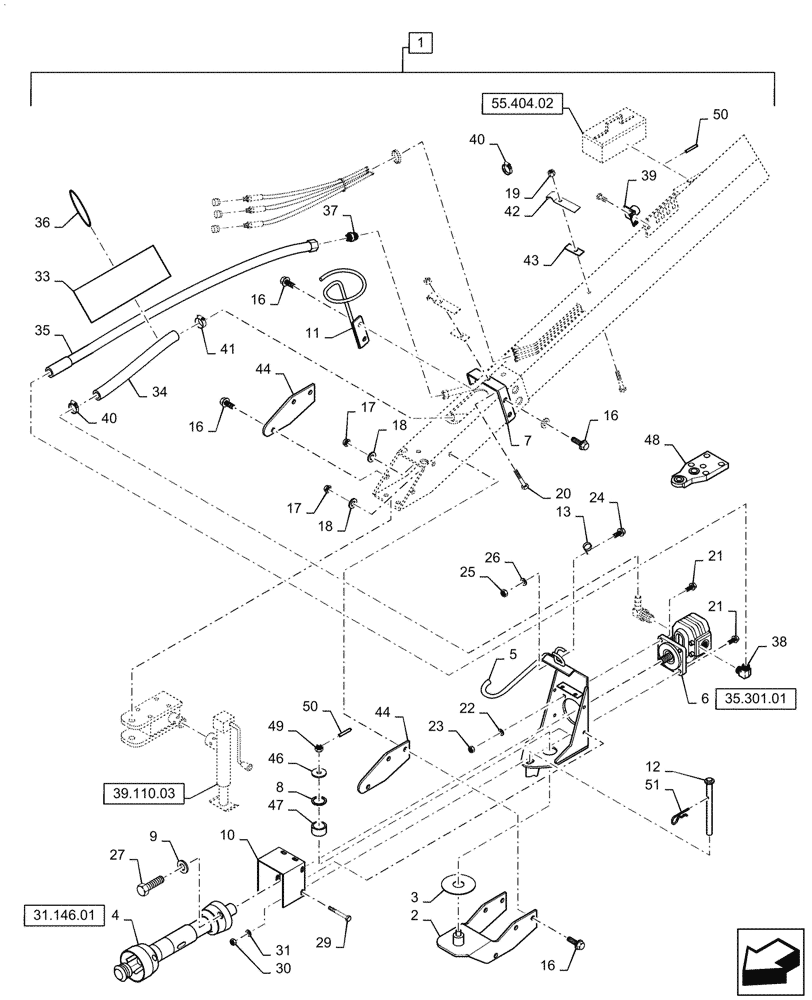

Схема запчастей Case IH SCX100 - (07.10) - PTO DRIVEN HYDRAULIC PUMP RETROFIT KIT (07) - HYDRAULICS
35.301.01
31
43
27
50
3
21
16
23
5
2
16
39
19
30
22
49
10
20
35
44
51
7
18
13
47
9
46
41
50
33
40
26
34
17
4
16
11
37
48
17
8
42
1
24
21
36
40
18
29
44
6
38
25
12
16
31.146.01
39.110.03
55.404.02

Артикул

Название

Примечание

Количество

1

87486127

DIA KIT, HARVESTER

PTO Driven Hyd. Pump Retrofit Kit, 14' & 16' Headers, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

Parts Shown in Art Without Reference Numbers are Not Included in Kits. These Parts are Existing Parts on the Unit.

1шт.

1

87486128

DIA KIT, HARVESTER

PTO Driven Hyd. Pump Retrofit Kit, 18' Headers, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

Parts Shown in Art Without Reference Numbers are Not Included in Kits. These Parts are Existing Parts on the Unit.

1шт.

2

87050262

SUPPORT

1шт.

3

87011656

WASHER

1шт.

4

87035544

PTO SHAFT

1шт.

5

84238370

MOUNT

Includes: Ref. 5a

1шт.

6

87587983

PUMP

Hydraulic

1шт.

87587983R

REMAN-HYD PUMP

SCX100 (9/01-9/08)

1шт.

87587983C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7

87739116

BRACKET

1шт.

8

87470613

WASHER

1шт.

9

84261230

WASHER

1шт.

10

87748394

SHIELD

1шт.

11

87743264

GUIDE

1шт.

14' & 16' Headers Only

1шт.

12

87636037

ROD

1шт.

13

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

14

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

15

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

86521620

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

10шт.

17

86521608

FLANGE NUT,Flg, 5/8"-11, G5

10шт.

18

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

10шт.

19

9637692

NUT,3/8"-16, Gr B

15шт.

20

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

1шт.

21

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

23

86521607

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

24

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

25

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

27

86505834

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8, Full Thd

1шт.

28

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

1шт.

29

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

30

86629544

NUT,5/16” – 18, GR B

6шт.

31

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

6шт.

33

86520217

SLEEVE

1шт.

14' & 16' Headers Only

1шт.

33

84164253

PROTECTIVE SLEEVE

1шт.

18' Headers Only

1шт.

34

87704853

HYDRAULIC HOSE,31.75mm ID x 2032mm L

1шт.

35

87666380

HOSE ASSY.

Hydraulic

1шт.

14' & 16' Headers Only

1шт.

35

84164134

FLEXIBLE HOSE,25.4mm ID x 1956mm L, SAE 100R12

Hydraulic

1шт.

18' Headers Only

1шт.

36

527350

STRAP

3шт.

37

86513057

UNION

1шт.

38

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

39

86705581

STEM

1шт.

40

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

41

851281

CLAMP

1шт.

42

769000

CLAMP

8шт.

43

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

8шт.

44

87738353

PLATE

2шт.

14' & 16' Headers Only

1шт.

45

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

1шт.

14' & 16' Headers Only

1шт.

46

87758721

WASHER

1шт.

47

87708864

BUSHING

1шт.

48

87637365

PLATE

Hitch

1шт.

49

88886

SLOTTED NUT,3/4"-16

1шт.

50

86544803

PIN

1шт.

51

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

1шт.

Выбрано товаров: 66
