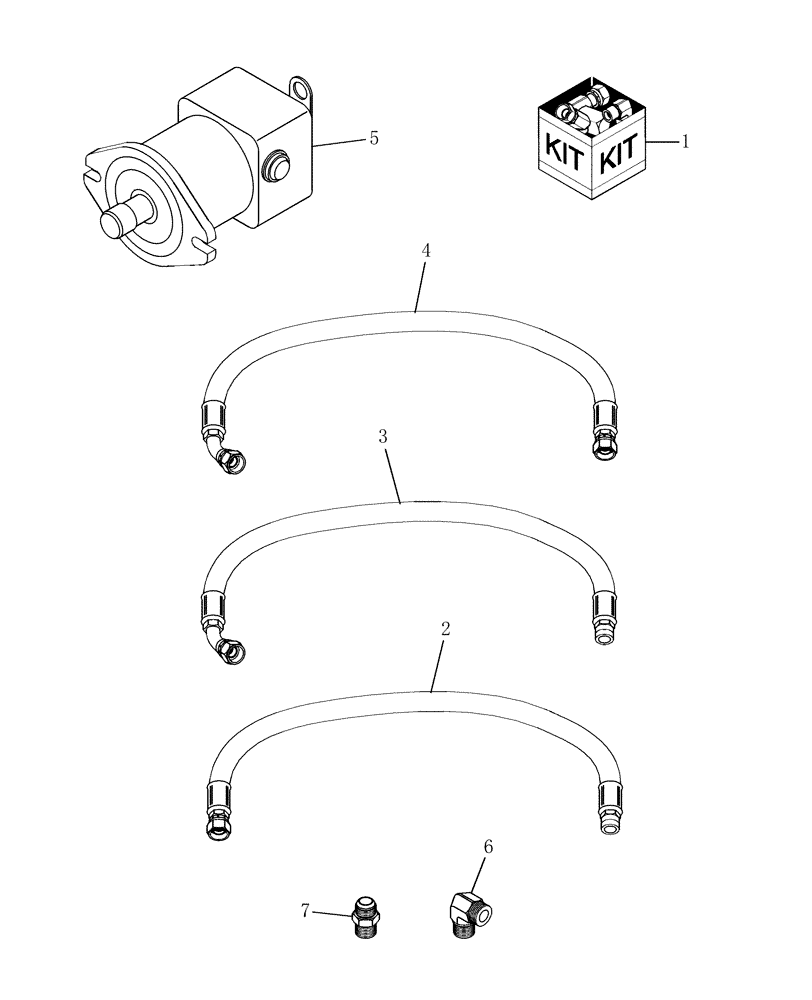

Запчасти Case IH SCX100 (07.08) - HYDRAULIC HEADER MOTOR UPGRADE KIT (07) - HYDRAULICS

1

716988016

DIA KIT, HARVESTER

44cc Hyd. Motor Upgrade Kit, Includes: Ref. 2 - 7 & Instructions

1шт.

After PIN HAJ0011284

1шт.

2

86900302

FLEXIBLE HOSE,0.38" ID x 115.50", SAE 100R6

Male Swivel, Str x Str Female, 37° FL

1шт.

3

86900301

FLEXIBLE HOSE,25.4mm ID x 2247.9mm L, SAE 100R4

88-1/2", Male Swivel, Str x 45° Female, 37° FL

1шт.

4

86900300

FLEXIBLE HOSE,25.4mm ID x 2349.5mm L, SAE 100R12

92-1/2", Female Swivel, 37° FL x 45° Female, 37° FL

1шт.

5

86837566

HYDRAULIC MOTOR

44cc

1шт.

5

86837566R

REMAN-HYD MOTOR

SCX100 (9/01-9/08)

1шт.

5

86837566C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

5

87298004

REMAN-HYD MOTOR

SCX100 Pivot Tongue MC -- Has Radial Side Ports

1шт.

5

87298005

CORE-MOTOR HYDRAULIC

Return Number

1шт.

6

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Includes: O Ring

1шт.

7

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.
