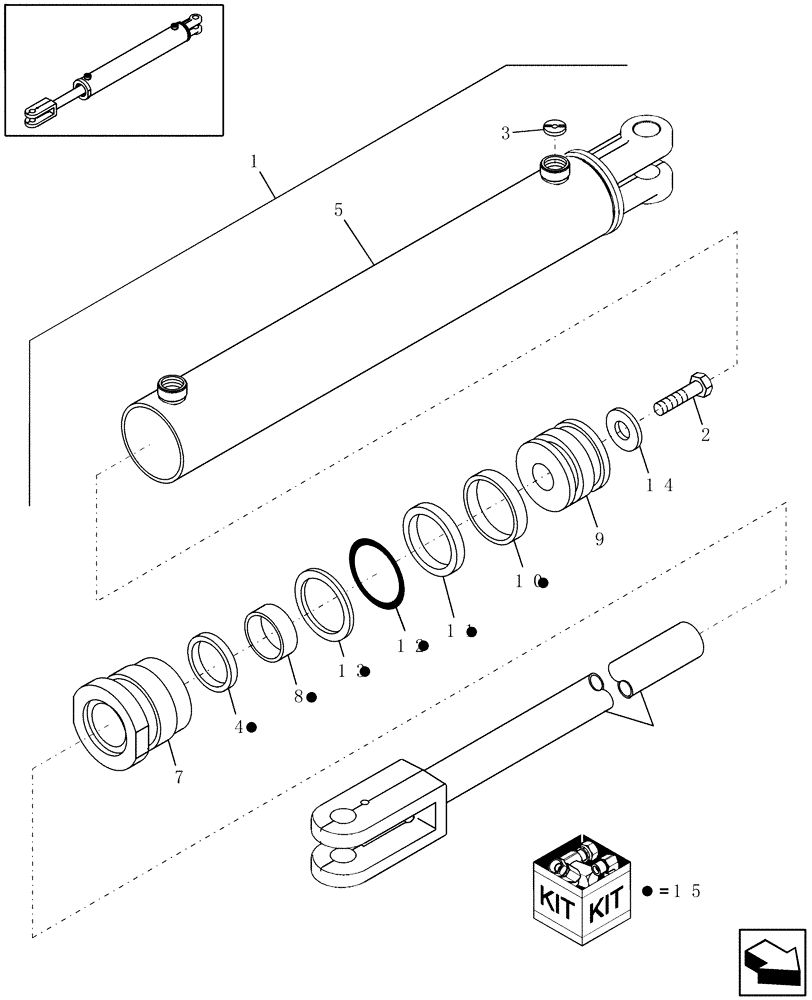

Запчасти Case IH SCX100 (07.07) - HYDRAULIC CYLINDER, SWING (07) - HYDRAULICS

1

87018098

HYDRAULIC CYLINDER

Monarch

1шт.

Components interchangeable with previous cylinder 86643606

1шт.

87515542R

REMAN-HYD CYLINDER

SCX100 (9/01-9/08), Reman for New P/N 87018098

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

2

426-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

Use w/ Ref. 6B

1шт.

3

285636

ORIFICE

1шт.

4

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Barrel

1шт.

6

86643607

ROD

W/ Female Thread End

1шт.

7

86603706

CYLINDER HEAD

1шт.

8

2978421

O-RING

1шт.

9

86603723

PISTON

Decelerator

1шт.

10

771714

RING

Wear, 2.876" ID x .50" Thk

1шт.

11

86595542

SEAL

1шт.

12

238-5335

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

1шт.

13

86609324

SEALING WASHER

SEAL WASHER Back-Up, 2.643" ID x .064" Thk

1шт.

14

9803749

WASHER

Hardened, Use W/ Ref. 6B

1шт.

15

86603708

SEAL KIT

1шт.
