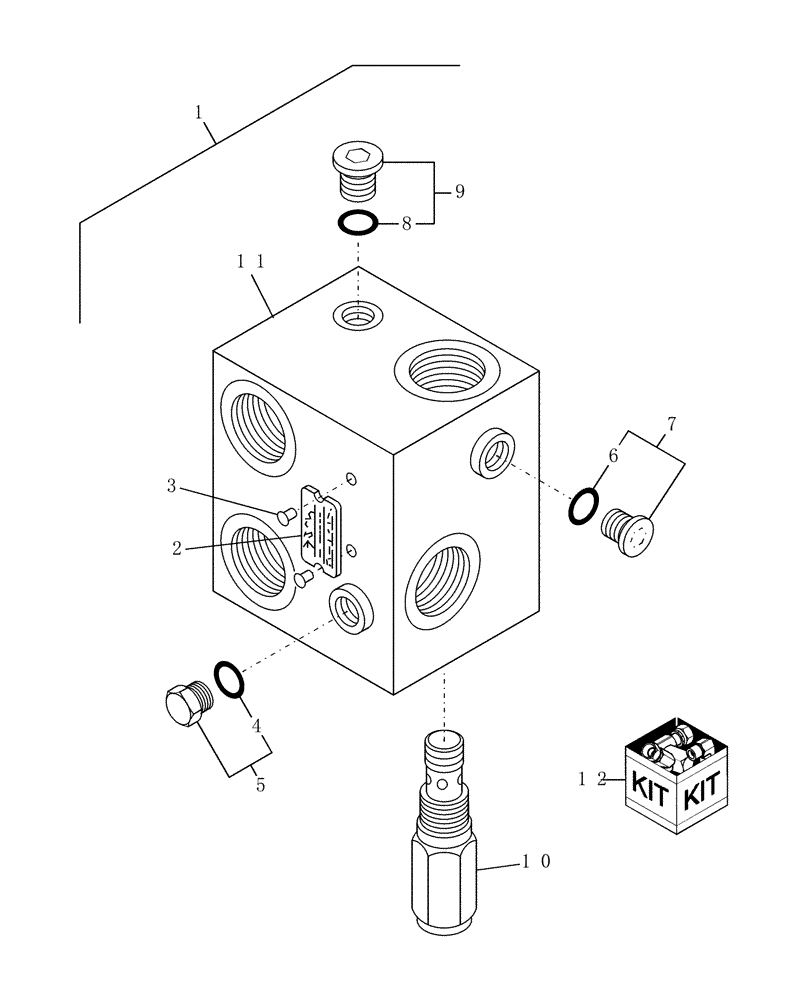

Запчасти Case IH SCX100 (07.04) - RELIEF VALVE (07) - HYDRAULICS

1

87394354

VALVE, PRESSURE RELI

EF Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Nameplate

1шт.

3

NSS

NOT SOLD SEPARAT

Rivet

2шт.

5

129998

PLUG,1/2" - 20 ORB

& O-Ring

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

86508737

PLUG,7/8" - 14

& O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

278548

PLUG,Hex, 7/16"-20 ORB

& O-Ring

1шт.

10

87396661

VALVE PRESSURE RELIE

Valve, Pressure Relief

1шт.

11

NSS

NOT SOLD SEPARAT

Manifold

1шт.

12

86508168

SEAL KIT

Services Ref. 10, Includes: (2) O-Rings, (1) Back-up Washer

1шт.

4

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.
