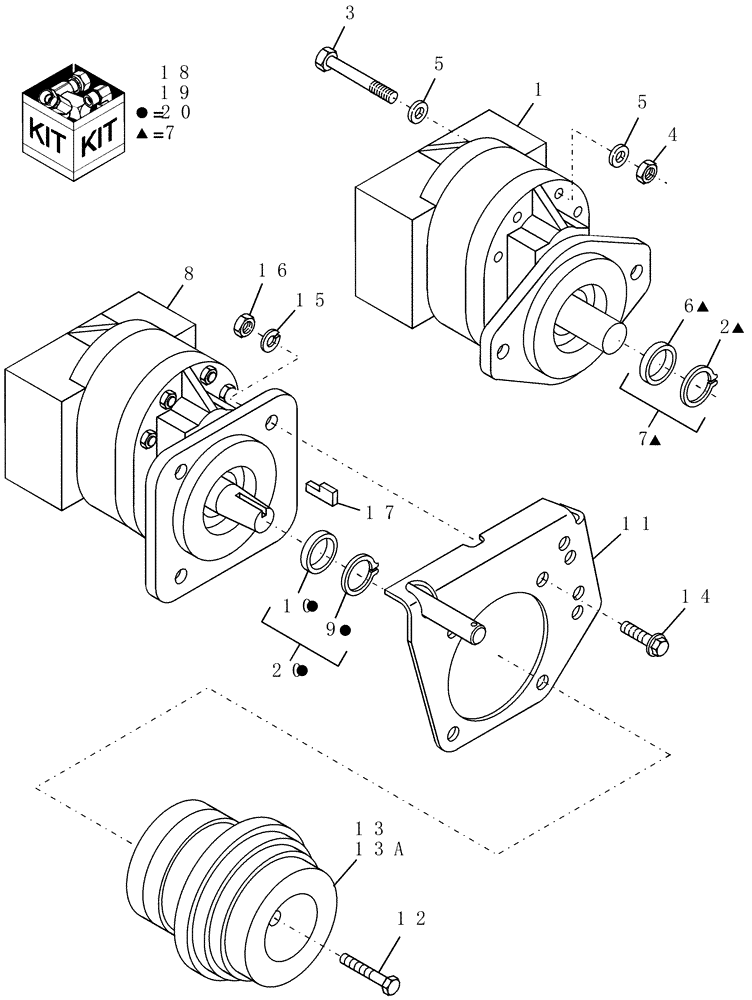

Запчасти Case IH SCX100 (07.01) - GEAR PUMPS, SAUER-SUNSTRAND, 540 & 1000 RPM (07) - HYDRAULICS

1

86518974

HYDRAULIC PUMP

All 540 RPM, Includes: Ref. 2 - 7

1шт.

2

100-21162

SNAP RING,1.625", Int, #162

1шт.

3

86520697

BOLT,Hex, 7/16" - 20 x 3 3/4", Gr 8

8шт.

4

429-117

NUT,7/16"-20, G8

8шт.

5

9790555

WASHER,11.79mm ID x 19.43mm OD x 3.07mm Thk

16шт.

6

271430

SEAL

1шт.

7

86528363

SEAL KIT

540RPM

1шт.

8

86537551

HYDRAULIC PUMP

1000 RPM Direct Drive, Includes: Hardware, Ref. 9, 10, & 17

1шт.

Does not include coupling, Ref 13 or 13A

1шт.

9

100-21200

SNAP RING,2", Int, #200

1шт.

10

NSS

NOT SOLD SEPARAT

Seal

1шт.

11

86538409

BRACKET

1шт.

12

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

1шт.

13

87028397

COUPLING

OD Fit, 1-3/8" Spline, Includes: Lock Collar Kit, Ref. 18

1шт.

13a

86565411

COUPLING

1-3/4" Spline, Includes: Lock Collar Kit, Ref. 19

1шт.

OPTIONAL

1шт.

14

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

15

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

16

425-288

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

17

87483

KEY,0.31" x 1.5" L

5/16" x 5/16" x 1-1/2"

1шт.

18

9604615

SERVICE KIT

Kit, 1-3/8", Includes: (1) Collar, (3) Balls & (1) Retaining Ring

1шт.

19

86579910

KIT

Lock Collar, 1-3/4", Includes: (1) Collar, (3) Balls & (1) Retaining Ring

1шт.

20

86563397

SEAL KIT

1000RPM

1шт.
