Запчасти Case IH SCX100 (06.01) - TAIL LIGHTS & WIRING (06) - ELECTRICAL

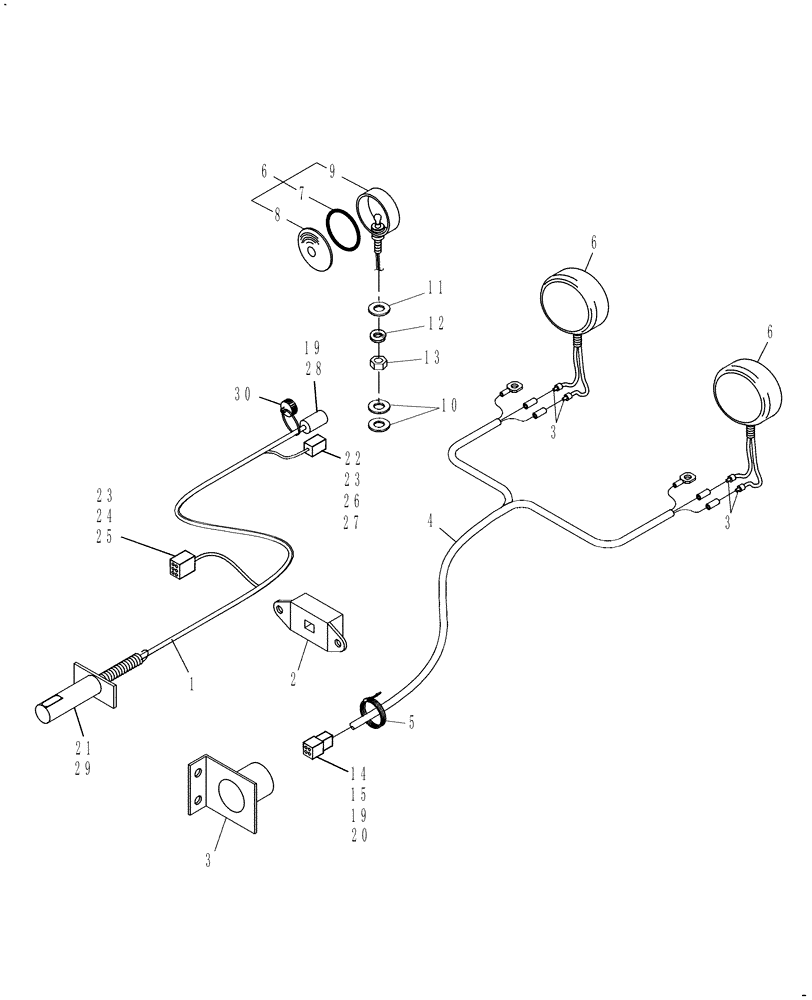

Схема запчастей Case IH SCX100 - (06.01) - TAIL LIGHTS & WIRING (06) - ELECTRICAL
25
20
19
3
6
29
3
13
23
21
19
6
14
5
26
27
28
30
10
11
4
9
8
12
15
22
7
3
23
2
1
6
24

Артикул

Название

Примечание

Количество

1

86560342

WIRE HARNESS

Tractor To Module

1шт.

2

86561136

MODULE

Lighting

1шт.

3

9611467

HOLDER

Plug Holder

1шт.

4

86560343

WIRE HARNESS

Tongue Connector and Brake Tail Lights

1шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

6

86621619

WARNING LIGHT

Red

2шт.

7

86627435

O-RING,3.484" ID x 0.139" Width

3шт.

8

86622241

LENS

Red

2шт.

9

T34857

BULB,C6, #1157, 12.8V

1шт.

10

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

M12.7

2шт.

11

495-21056

WASHER,1/2"

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

13

425-118

NUT,1/2"-20, G5

1шт.

14

87694154

CONTACT HOUSING,Male, 4 Pole

4 Way Housing

1шт.

15

87694145

ELEC CONNECTOR

Wedge Lock for 4 Way Receptacle

1шт.

19

87694144

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Stamped Contact

2шт.

20

87695607

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Stamped Contact

2шт.

21

87704559

TERMINAL

Terminal

5шт.

22

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

2шт.

23

87694141

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Stamped Contact

8шт.

24

87694150

LOCKING TAB,Wedge Lock

For 6 Way Plug

1шт.

25

87694112

ELEC CONNECTOR,Female, 6 Pole

6 Way Recepacle Housing

5шт.

26

87694153

CONTACT HOUSING,Female, 4 Cavities

4 Way Recepacle Housing

1шт.

27

87694146

ELEC CONNECTOR,Locking, Green

Wedge Lock For 4 Contact Plug

1шт.

28

225161C1

ADAPTER

3 Way Housing

1шт.

29

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

30

225290C1

DUST CAP

1шт.

Выбрано товаров: 27
