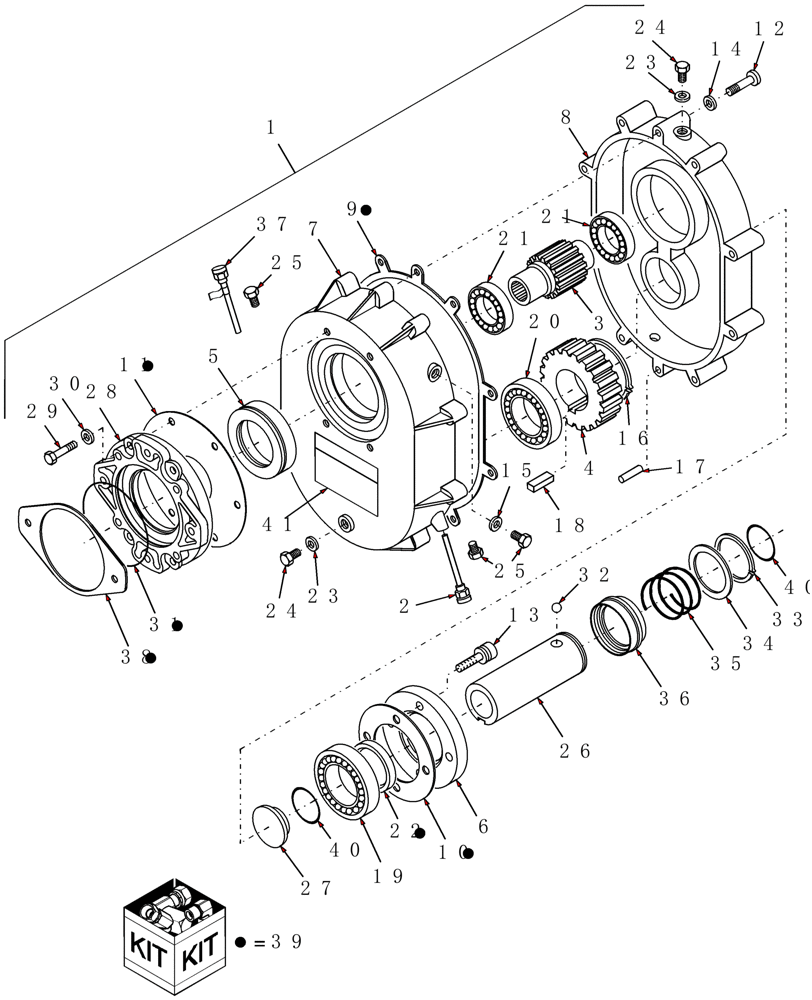

Запчасти Case IH SCX100 (03.01) - GEARBOX, 540 RPM, SAUER-SUNSTRAND (03) - MAIN GEARBOX

1

86518972

GEARBOX

540 RPM, Includes: Ref. 2 - 38, 40, & 41

1шт.

1

86518972R

REMAN-GEARBOX

SCX100

1шт.

1

86518972C

CORE-GEARBOX

Return Number

1шт.

2

86531472

DIPSTICK

Pump Down, 540 RPM

1шт.

3

86531474

GEAR

Output, 1:3.71

1шт.

4

86531475

GEAR

Input, 1:3.71

1шт.

5

86531477

FLANGE

1шт.

6

86531478

FLANGE

1шт.

7

NSS

NOT SOLD SEPARAT

Housing Half

1шт.

8

NSS

NOT SOLD SEPARAT

Housing Half

1шт.

9

86531479

GASKET

1шт.

10

86531480

GASKET

1шт.

11

86531481

GASKET

1шт.

12

862-20050

HEX SOC SCREW,M20 x 50mm, Cl 12.9

8шт.

13

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

14

86531624

SEALING WASHER

8шт.

15

86531625

SEALING WASHER

4шт.

16

800-1155

RETAINER,55mm ID

External, 55 mm x 2 mm

1шт.

17

837-8030

DOWEL,M8 x 30

Pin

2шт.

18

86531626

KEY

1шт.

19

210058

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

20

G10418

BEARING, BALL

50 mm x 80 mm x 16 mm

1шт.

21

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

2шт.

22

86531465

SEAL

1шт.

23

86531631

SEALING WASHER

5шт.

24

86531633

PLUG

5шт.

25

86531632

PLUG

Also Used at Dipstick

3шт.

26

86531483

PTO SHAFT

540 RPM, Includes: Ref. 27

1шт.

27

86531464

PLUG

Includes: Ref. 40

1шт.

28

86531466

ADAPTER

1шт.

29

864-24130

HEX SOC SCREW,M24 x 130mm, Cl 8.8

4шт.

30

86531623

SEALING WASHER

4шт.

31

86531634

O-RING,3.989" ID x 4.129" OD x 0.07"

1шт.

32

110680

BALL,12.75mm OD

3шт.

33

800-1150

SNAP RING,M50, Ext

1шт.

34

86531635

WASHER

1шт.

35

86531467

SPRING

1шт.

36

86531468

CAM

1шт.

37

86531470

DIPSTICK

Pump Up, 540 RPM

1шт.

38

763604

GASKET

1шт.

39

86533358

GASKET KIT

1шт.

40

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

41

86537465

DECAL

DANGER, for 540 RPM Gearbox

1шт.
