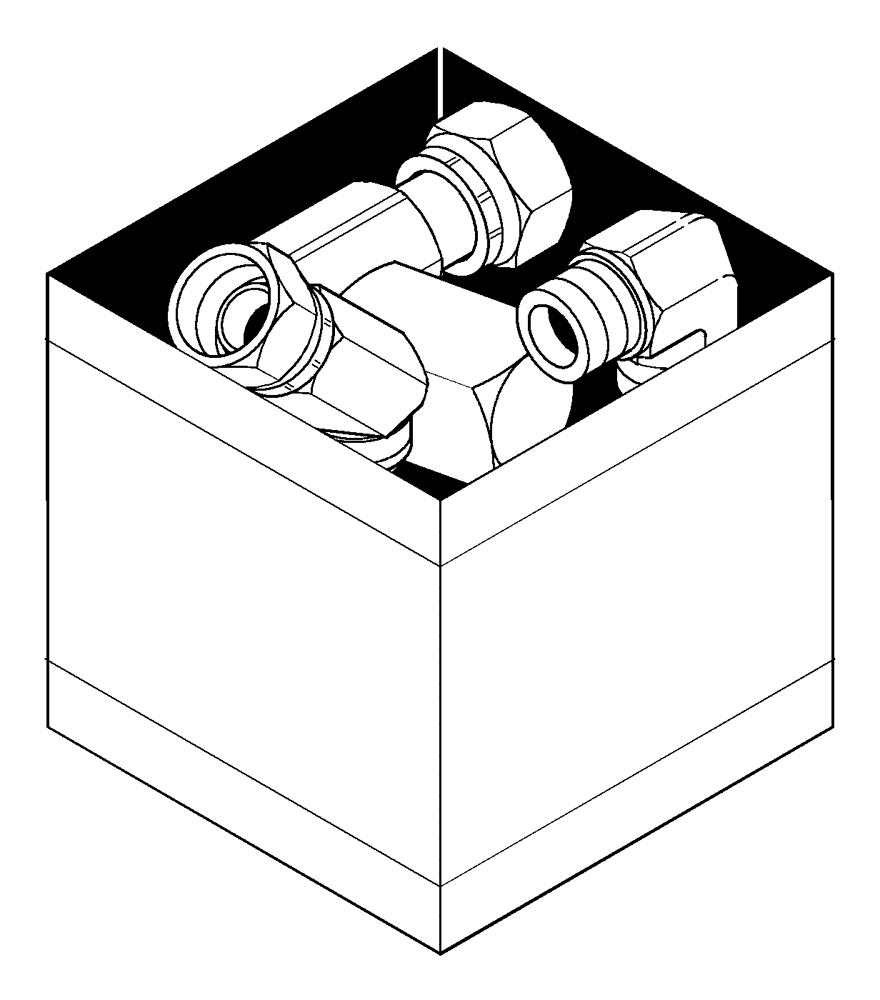

Запчасти Case IH SCX100 (PARTS) - RECOMMENDED STOCK LIST FOR 5 UNITS (00) - GENERAL

86632703

ROD

1шт.

86632018

HYDRAULIC OIL FILTER

2шт.

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

25шт.

86603982

SEAL KIT

Tilt Cylinder

1шт.

86603708

SEAL KIT

Swing Cylinder

1шт.

87392710

VALVE, PRESSURE RELI

EF

1шт.

86563731

HOSE,31.75mm ID x 1117.6mm L

1шт.

86563730

FLEXIBLE HOSE,25.4mm ID x 1143mm L, SAE 100R12

1шт.

86563397

SEAL KIT

Pump, 1000 RPM

1шт.

86528363

SEAL KIT

Pump, 540 RPM

1шт.

86525304

SEAL KIT

Slave Cylinder

1шт.

86515504

BOLT

1шт.

86514938

FLEXIBLE HOSE,25.4mm ID x 2159mm L, SAE 100R4

1шт.

86514937

HOSE

1шт.

86510955

STOP

2шт.

86510727

WASHER

1шт.

86508168

SEAL KIT

Relief Valve

2шт.

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

792803

SEAL KIT

Master Cylinder

2шт.

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

86900300

FLEXIBLE HOSE,25.4mm ID x 2349.5mm L, SAE 100R12

1шт.

86900301

FLEXIBLE HOSE,25.4mm ID x 2247.9mm L, SAE 100R4

1шт.
