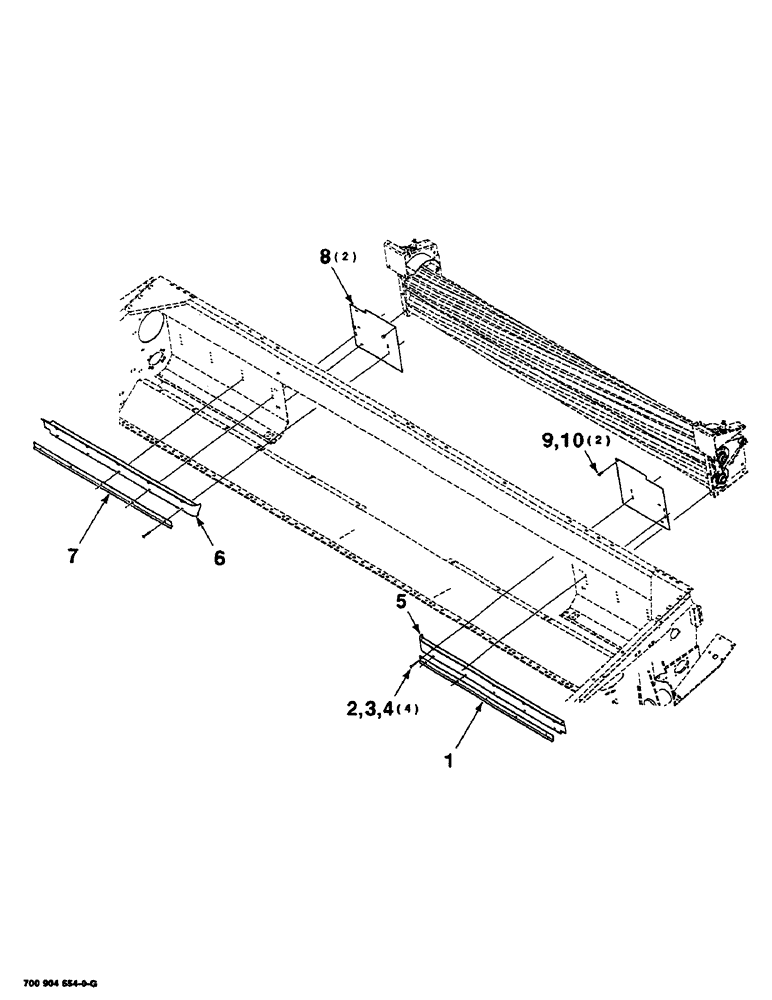

Запчасти Case IH SC416 (9-28) - CLOSE UP KIT, 16 FOOT, HK60929 CLOSE UP KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

HK60929

KIT

CLOSE UP KIT (16 FOOT)

1шт.

1

700124228

ANGLE

- stripper left

1шт.

2

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

4шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

4

425-105

NUT,5/16"-18, G5

4шт.

5

700147315

STRIPPER

WA - left

1шт.

6

700147317

STRIPPER

WA - right

1шт.

7

700124229

ANGLE

- stripper right

1шт.

8

700124213

SHIM

2шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHM

2шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.
