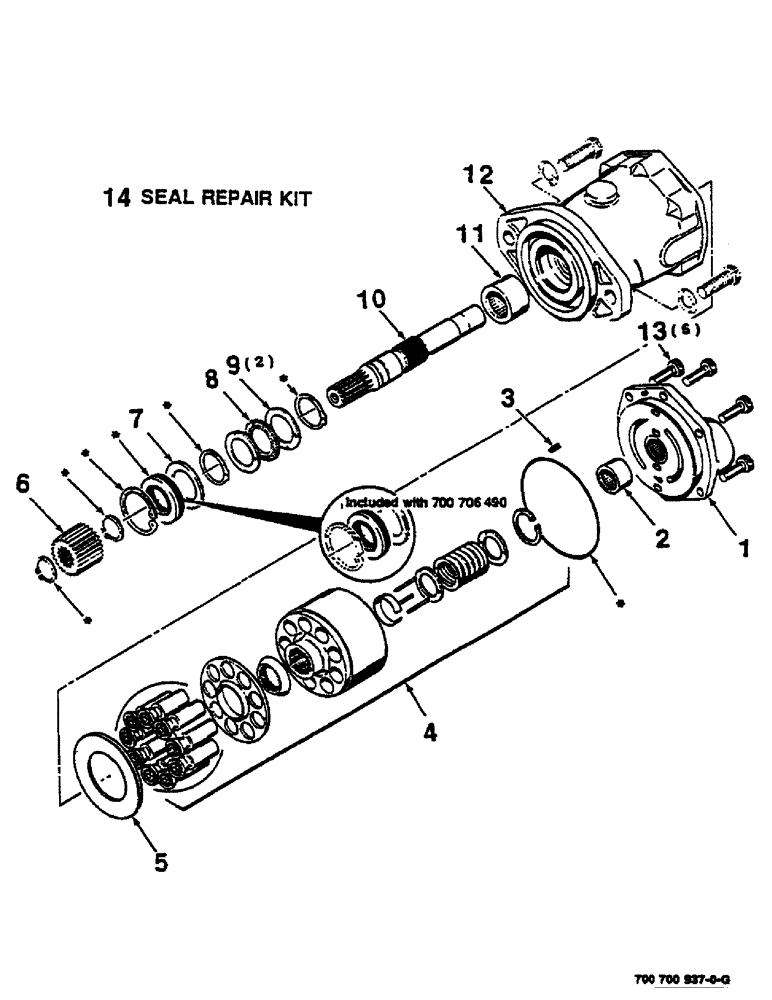

Запчасти Case IH SC416 (9-12) - HYDROSTATIC PUMP, PTO, 540 RPM, 700700937 HYDROSTATIC PUMP, PTO COMPLETE (09) - CHASSIS

700700937

PUMP, HYDRAULIC

HYDROSTATIC PUMP - pto complete 540 rpm

1шт.

277624R

REMAN-HYD PUMP

SC414, SC416, Reman For New P/N 700700937

1шт.

277624C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

700700706

LARGE PLATE

BACK PLATE ASSEMBLY (includes needle bearing)

1шт.

2

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - needle

1шт.

3

138-53

LOCK PIN,1/8" x 1/2", Slotted

Pin, 1/8" x 1/2", Slotted

1шт.

4

50-2801T1

CYLINDER

ROTATING PISTON REPAIR KIT

1шт.

5

700700705

CAM

INSERT

1шт.

6

T55332

GEAR

- sun

1шт.

7

95-81147

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

1шт.

8

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust

1шт.

9

A52205

RACE,28.63mm ID x 44.2mm OD x 2.41mm Thk

THRUST RACE

2шт.

10

7037948

SHAFT

- drive

1шт.

11

F62086

NEEDLE BEARING,Needle, 25.4mm ID x 33.34mm OD x 25.4mm W

BEARING - needle

1шт.

12

7037922

HOUSING

ASSEMBLY (includes needle bearing)

1шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

14

700700710

SEAL KIT

REPAIR KIT, includes items in art marked with asterisk

1шт.
