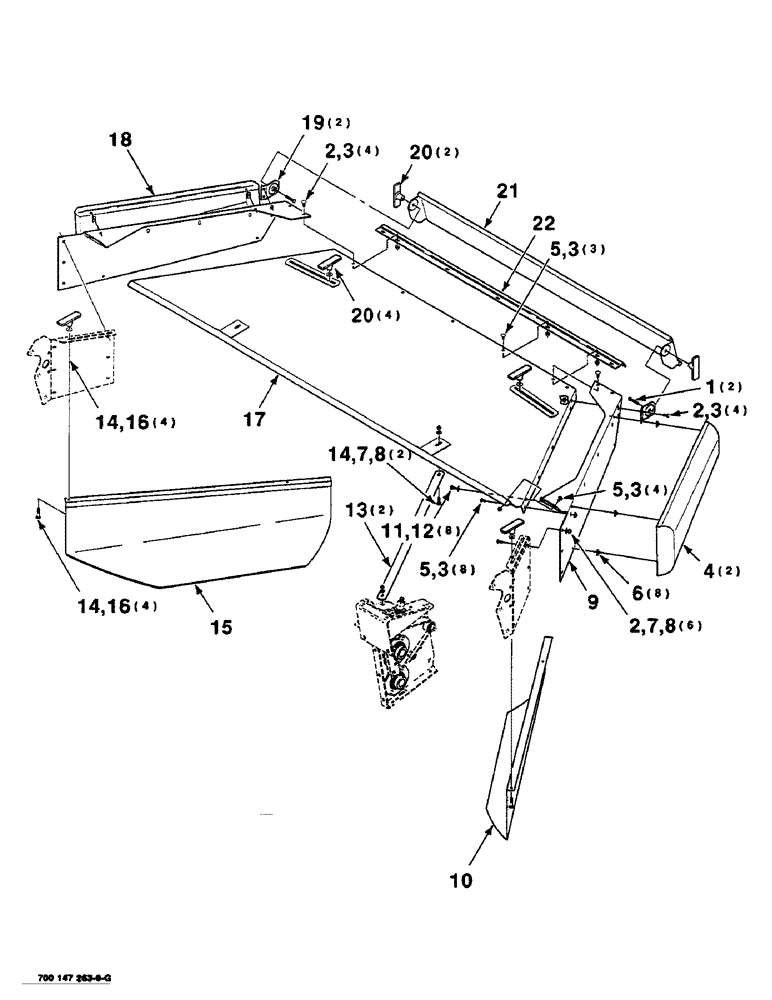

Запчасти Case IH SC416 (7-44) - FORMING SHIELDS ASSEMBLY (09) - CHASSIS

1

61-832

HEX SOC SCREW,1/2"-13 x 2"

1/2-13 X 2 HSHCS SPL

2шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

14шт.

3

329-286

FLANGE NUT,Flg, 3/8"-16, G8

23шт.

4

700147265

SHIELD

- side

2шт.

5

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

15шт.

6

700715241

NUT

- fastener

8шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

8

425-106

NUT,3/8"-16, Cl 5

8шт.

9

700147261

SHIELD

SUPPORT - shield, left

1шт.

10

700109840

SHIELD

- forming, left

1шт.

11

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

8шт.

12

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

13

700147225

STRAP

2шт.

14

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

10шт.

15

700109841

SHIELD

- forming, right

1шт.

16

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

8шт.

17

700147258

SHIELD

WA - top

1шт.

18

700147262

SHIELD

SUPPORT - shield, right

1шт.

19

700147311

MOUNTING PARTS

MOUNT ASSEMBLY - deflector

2шт.

20

700150906

HANDLE

ASSEMBLY

6шт.

21

700147266

DEFLECTOR

- rear

1шт.

22

700147309

SHIELD

STIFFENER - rear

1шт.
