(7-42) - SKID SHOES AND MOUNTING ASSEMBLIES, 16 FOOT

Запчасти Case IH SC416 (7-42) - SKID SHOES AND MOUNTING ASSEMBLIES, 16 FOOT (09) - CHASSIS

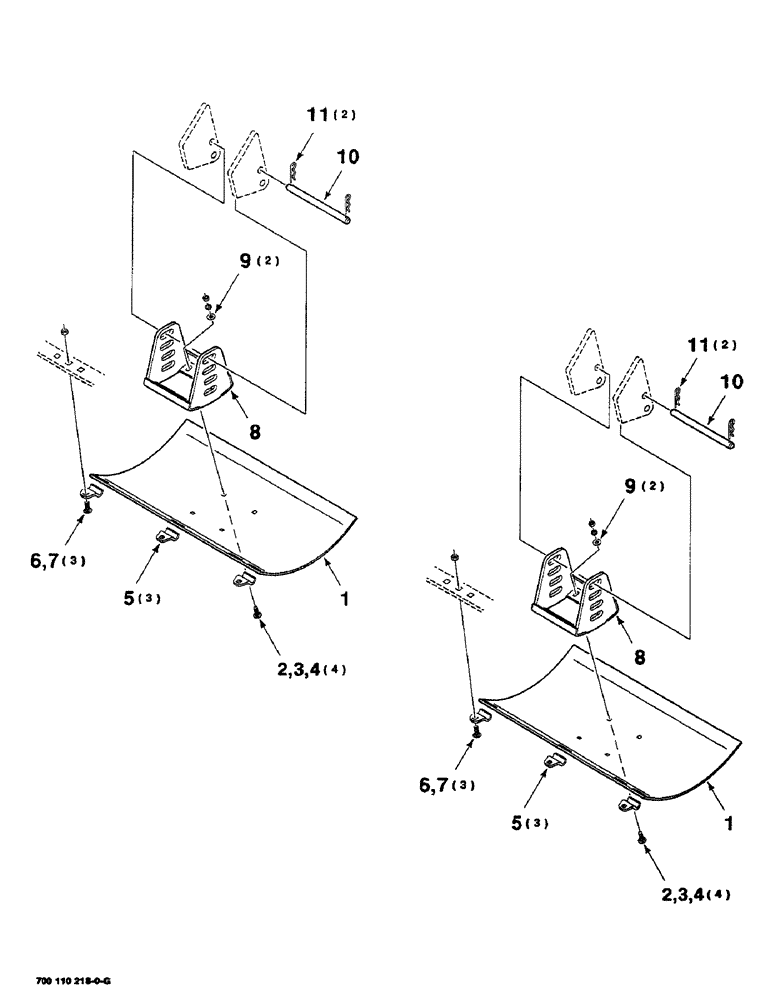

Схема запчастей Case IH SC416 - (7-42) - SKID SHOES AND MOUNTING ASSEMBLIES, 16 FOOT (09) - CHASSIS
7
10
4
4
9
9
2
6
1
8
3
1
5
3
11
2
7
5
6
11
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700110219

SKID PLATE

SKID SHOE

2шт.

2

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/16-18 X 1-1/4 PLOW BOLT

8шт.

3

492-11038

LOCK WASHER,3/8"

8шт.

4

425-106

NUT,3/8"-16, Cl 5

8шт.

5

6453799

CLIP

6шт.

6

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

6шт.

7

425-107

NUT,7/16"-14, G5

6шт.

8

700110220

SUPPORT

- skid shoe

2шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

10

700110222

PIN

2шт.

11

S120261

PIN

.148 WIRE HAIR PIN COTTER

4шт.
