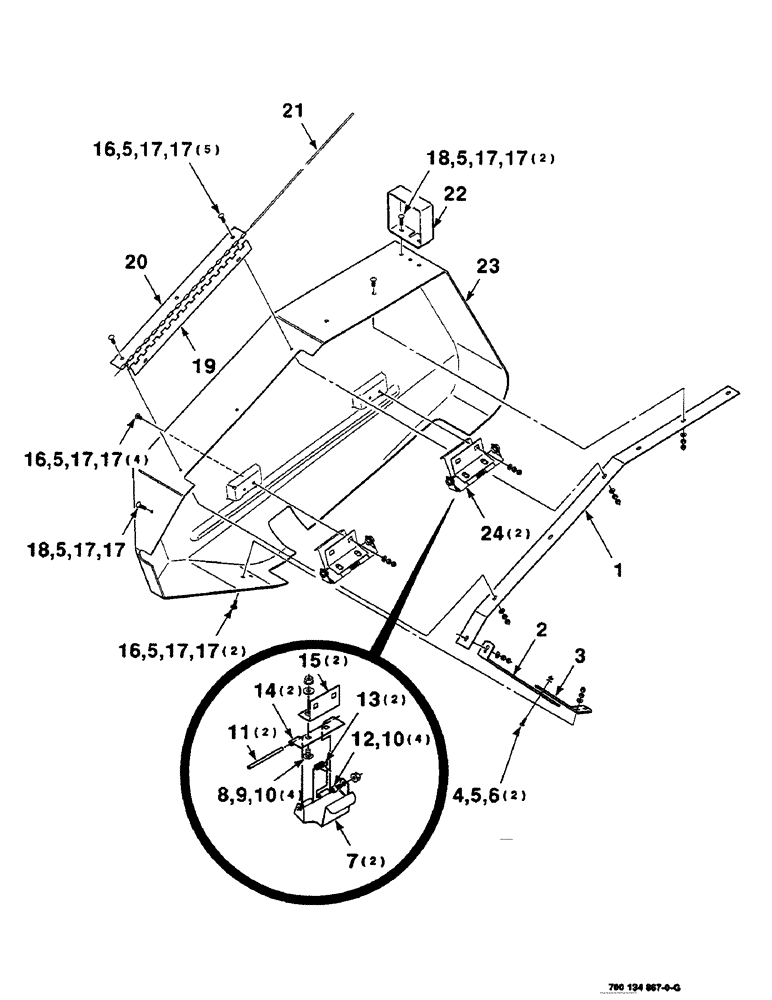

Запчасти Case IH SC416 (7-28) - SHIELD ASSEMBLY, RIGHT (09) - CHASSIS

1

700134860

STRAP

- right

1шт.

2

700134863

STRAP

- upper, right

1шт.

3

700134862

STRAP

- lower

1шт.

4

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

16шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

7

700150403

HANDLE

2шт.

8

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

4шт.

9

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

10

1703354

NUT

1/4-20 HFTLN GR/G

8шт.

11

700114528

PIN

- hinge

2шт.

12

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

1/4-20 X 1/2 HSHCS

4шт.

13

700711020

SPRING

- torsion

2шт.

14

700150404

MOUNTING PARTS

MOUNT - handle

2шт.

15

700150405

ANGLE

- latch

2шт.

16

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

11шт.

17

425-105

NUT,5/16"-18, G5

28шт.

18

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 RHSNB

3шт.

19

700134857

HINGE

- right

1шт.

20

700134859

HINGE

- right

1шт.

21

65250

PIN,4.76mm OD x 571.5mm L

- hinge

1шт.

22

700134850

GUARD

- flasher

1шт.

23

700715776

SHIELD

- right

1шт.

24

700150402

LATCH

ASSEMBLY

2шт.
