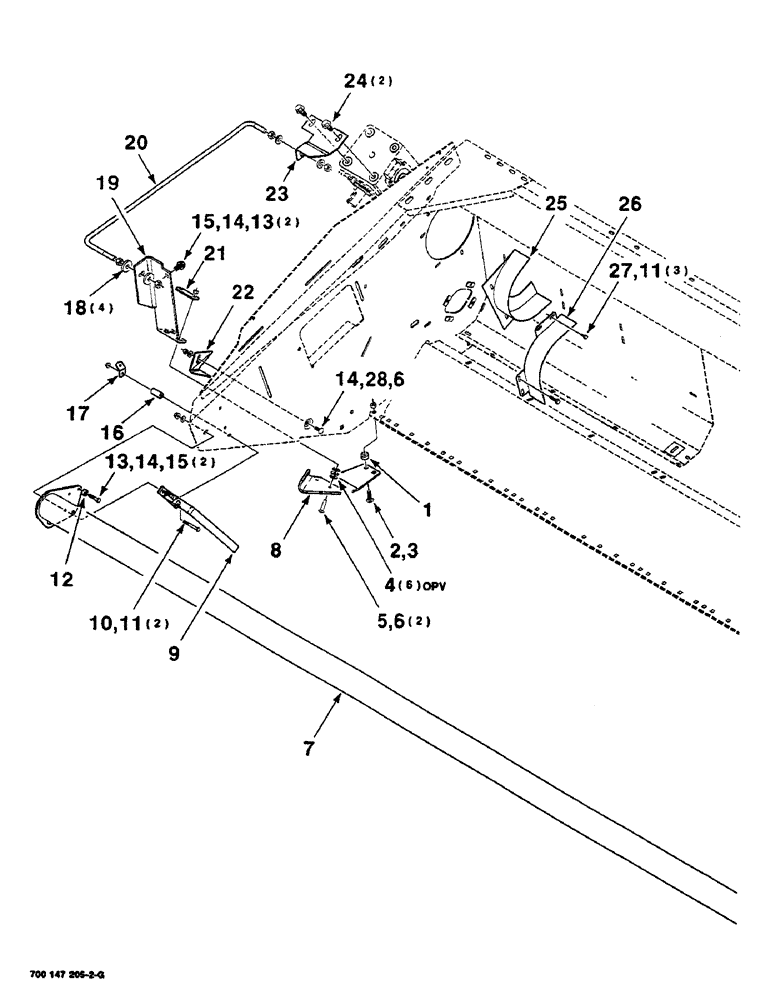

Запчасти Case IH SC416 (7-16) - DIVIDER, WRAPPERS & LEAN BAR ASSEMBLIES, RIGHT (09) - CHASSIS

1

700110561

SPACER

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

1шт.

3

425-107

NUT,7/16"-14, G5

1шт.

4

495-21044

WASHER,3/8"

6шт.

5

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 PLOW BOLT

2шт.

6

425-106

NUT,3/8"-16, Cl 5

3шт.

7

700124285

BAR

LEAN BAR (14 foot)

1шт.

700124286

BAR

LEAN BAR (16 foot)

1шт.

8

700114711

DIVIDER

- right

1шт.

9

700111947

DEFLECTOR

STRAP WA - deflector

1шт.

10

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

12

6605752

SPACER

1шт.

13

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

4шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

15

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

16

6828107

TUBE,10.57 mm ID, 19.05 mm OD, 40 mm Length

1шт.

17

700134873

MOUNTING PARTS

MOUNT - rod

1шт.

18

6223374

WASHER

4шт.

19

700134719

SUPPORT

- divider shoe, right

1шт.

20

700134721

GUIDE

- shield, right

1шт.

21

700114716

COVER PLATE

STRAP - reinforcement

1шт.

22

700136289

SHOE

- divider, right

1шт.

23

700134871

MOUNTING PARTS

MOUNT - rail

1шт.

24

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

2шт.

25

700134714

SHIELD

WRAPPER WA - upper

1шт.

26

700134711

SHIELD

WA

1шт.

27

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

28

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.
