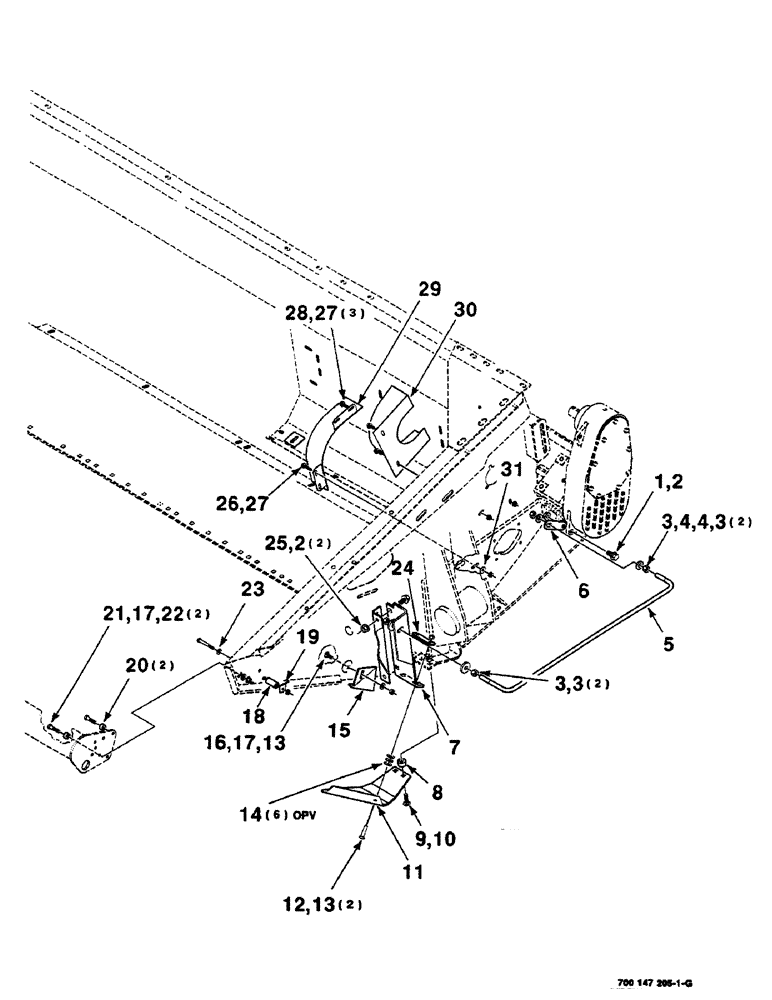

Запчасти Case IH SC416 (7-14) - DIVIDER, WRAPPERS & LEAN BAR ASSEMBLIES, LEFT (09) - CHASSIS

1

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

1шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

4

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

5

700134720

GUIDE

- shield, left

1шт.

6

700134872

STRAP

1шт.

7

700134717

SUPPORT

- divider shoe, left

1шт.

8

700114717

SPACER

1шт.

9

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

1шт.

10

425-107

NUT,7/16"-14, G5

1шт.

11

700114709

DIVIDER

- left

1шт.

12

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 PLOW BOLT

2шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.

14

495-21044

WASHER,3/8"

6шт.

15

700136288

SHOE

- divider, left

1шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

17

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

18

6828107

TUBE,10.57 mm ID, 19.05 mm OD, 40 mm Length

1шт.

19

700134873

MOUNTING PARTS

MOUNT - rod

1шт.

20

6605752

SPACER

2шт.

21

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

2шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

23

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

24

700114716

COVER PLATE

STRAP - reinforcement

1шт.

25

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

2шт.

26

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

28

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

29

700134711

SHIELD

WA

1шт.

30

700134714

SHIELD

WRAPPER WA - upper

1шт.
