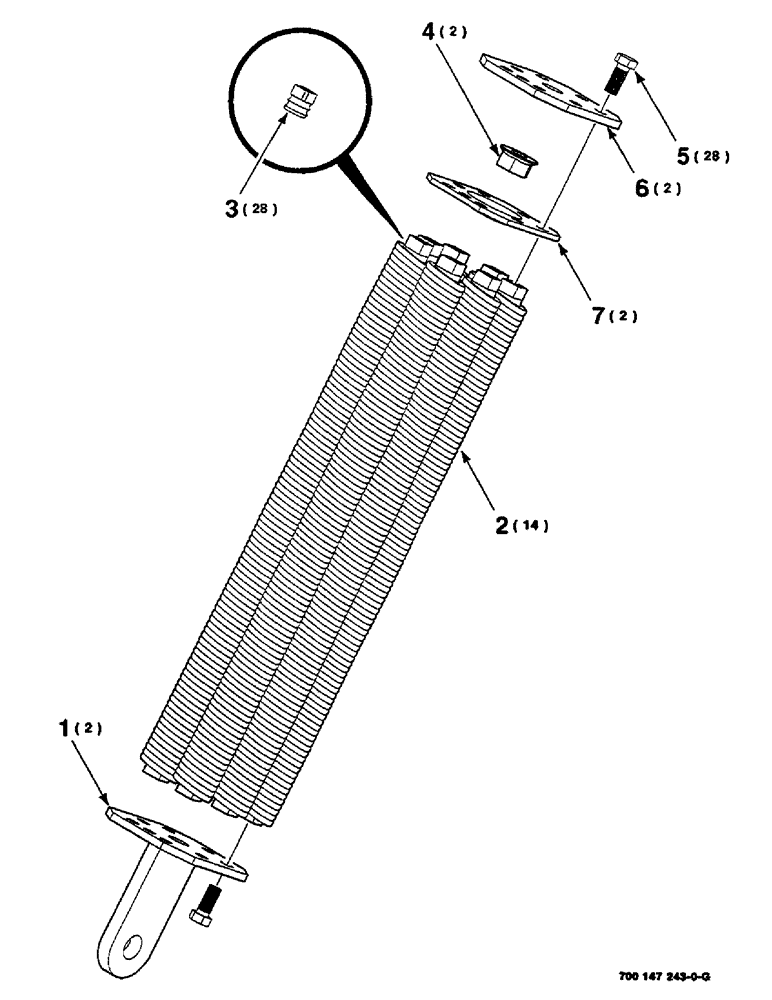

Запчасти Case IH SC416 (7-12) - FLOTATION SPRING ASSEMBLY, SC416D (09) - CHASSIS

1

700147244

HANGER

WA - spring

2шт.

2

700115183

SPRING

ASSEMBLY (includes item 3)

14шт.

3

299230

PLUG

- spring

28шт.

4

700717861

NUT

1-8 HFN GR8

2шт.

5

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

28шт.

6

700147169

PLATE

- hanger

2шт.

7

700150399

PLATE

2шт.
