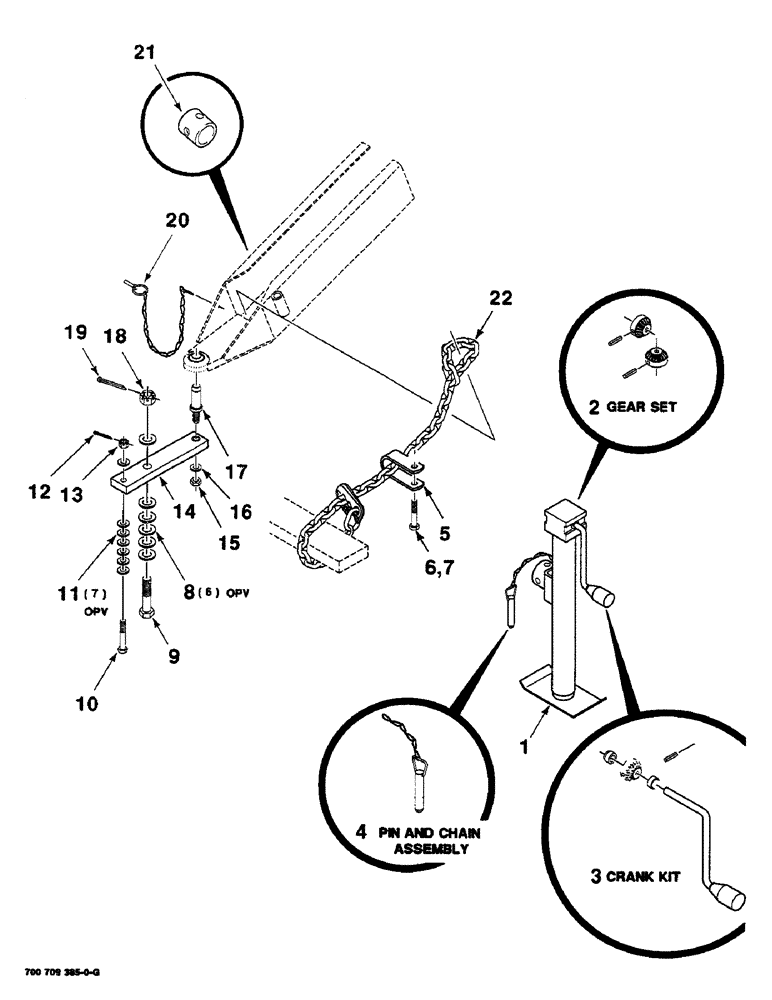

Запчасти Case IH SC416 (7-02) - HITCH AND JACK ASSEMBLY (09) - CHASSIS

1

700709385

JACK

(Incl. items 2, 3 & 4)

1шт.

2

700702059

KIT

GEAR SET

1шт.

3

700702060

CRANKED HANDLE

CRANK KIT

1шт.

4

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY

1шт.

5

148558C1

CLEVIS

1шт.

6

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

7

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

8

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

6шт.

9

700116537

SCREW

BOLT - special

1шт.

10

700116536

SCREW

BOLT - special

1шт.

11

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

7шт.

12

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

13

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

1шт.

14

1662008

DRAWBAR

EXTENSION - drawbar

1шт.

15

425-1114

NUT,7/8"-14, G5

7/8-14 H

1шт.

16

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

7/8 HARDENED PLAIN WASHER

1шт.

17

7751886

HITCH PIN

PIN - link, plated

1шт.

18

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

19

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

20

63768

PIN

CHAIN - pin, linch

1шт.

21

6227391

TUBE,2" OD, 1.88" Length

WA - jack

1шт.

22

700705598

CHAIN (CE)

CHAIN - safety

1шт.
