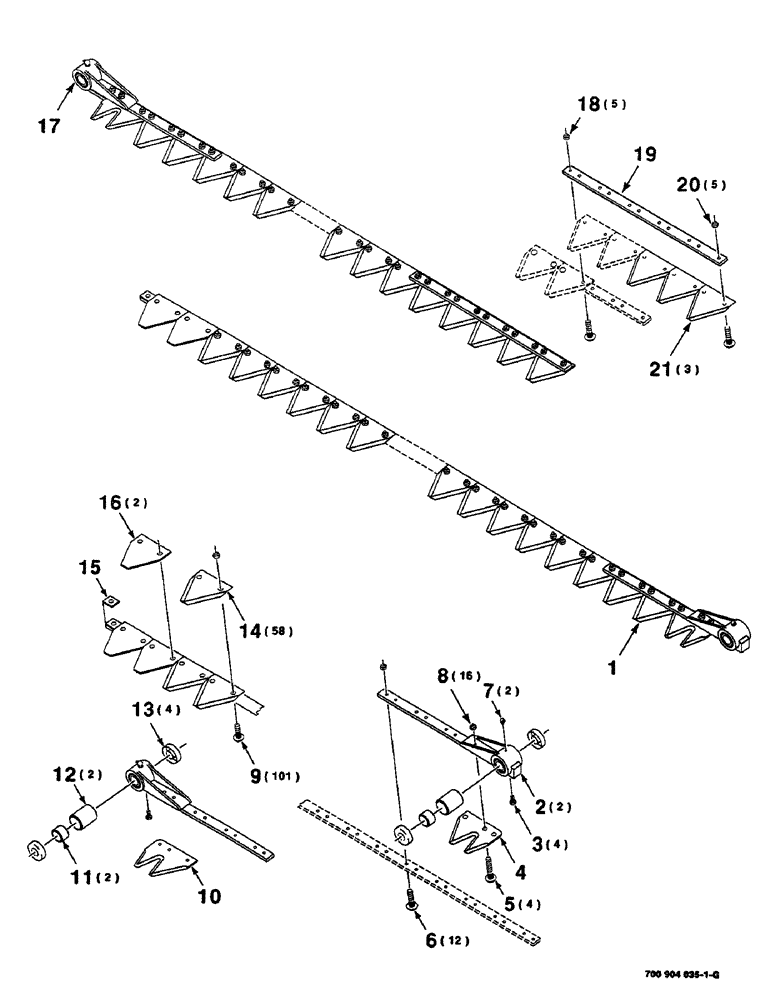

Запчасти Case IH SC416 (3-14) - SICKLE ASSEMBLIES, 16 FOOT (09) - CHASSIS

1

700715167

KNIFE ASSY

SICKLE ASSEMBLY - left

1шт.

2

700114594

KNIFE HEAD

SICKLE HEAD ASSEMBLY (includes items 7, 11, 12 and 13)

2шт.

3

28-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 8

1/4-28 X 1/2 C GR8 NP

4шт.

4

700705462

KNIFE SECTION

DOUBLE END SECTION, LEFT

1шт.

5

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLTS & NUTS (packaged 25 per box)

4шт.

6

700705297

KIT

#12-24 X 1 BOLTS & NUTS (packaged 25 per box)

12шт.

7

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

8

1954816C1

LOCK NUT

12-24 SPECIAL LOCK NUT

16шт.

9

700705296

BOLT AND NUT

#12-24 X 5/8 BOLTS & NUTS (packaged 50 per box)

101шт.

10

700705463

KNIFE SECTION

DOUBLE END SECTION, right

1шт.

11

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

NEEDLE - bearing

2шт.

12

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

INNER RACE

2шт.

13

697494R91

OIL SEAL

SEAL

4шт.

14

700705300

KNIFE SECTION

SECTION - sickle, top serrated (packaged 25 per box)

58шт.

15

6821052

SHIM

1шт.

16

748152

KNIFE SECTION

BLUNT SERRATED SECTION

2шт.

17

700715168

KNIFE ASSY

SICKLE ASSEMBLY - right

1шт.

18

700715170

BOLT

#12-24 X 3/4 BOLTS & NUTS

5шт.

19

700715218

BAR

- reinforcement

1шт.

20

700715160

HARDWARE,Flat Hd, CSK, #12 - 24 x 0.50", Spcl

#12-24 X 1/2 BOLTS & NUTS (packaged 25 per box)

5шт.

21

748210

KNIFE SECTION

TAPERED HOLE SECTION

3шт.

22

73340097

KIT

Overlap Kit (Not Shown)

1шт.
