Запчасти Case IH SC416 (3-06) - SWAYBAR LINK ASSEMBLY, 700124300 SWAYBAR LINK ASSEMBLY COMPLETE (09) - CHASSIS

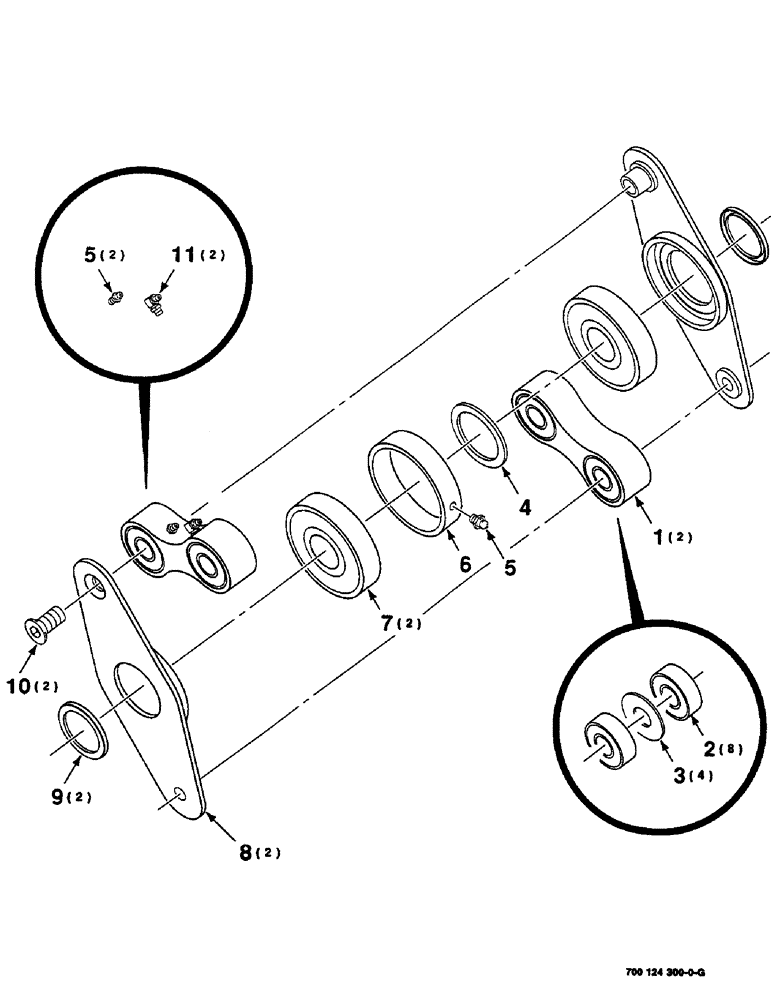

Схема запчастей Case IH SC416 - (3-06) - SWAYBAR LINK ASSEMBLY, 700124300 SWAYBAR LINK ASSEMBLY COMPLETE (09) - CHASSIS
7
2
11
9
10
5
6
1
5
3
8
4

Артикул

Название

Примечание

Количество

700124300

LINK

SWAYBAR LINK ASSEMBLY COMPLETE

1шт.

1

700124301

LINK

ASSEMBLY (includes items 2, 3, 5 and 11)

2шт.

2

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING

8шт.

3

195-2089

WASHER,25/32" x 1 1/2" x .083"

3/4 X 18 GAUGE WRMB

4шт.

4

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 18 GAUGE NRMB

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

6

700124302

SPACER

1шт.

7

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

BEARING

2шт.

8

700127948

LARGE PLATE

PLATE - pivot

2шт.

9

700706005

OIL SEAL

SEAL - oil

2шт.

10

700712806

BOLT,1/2" - 20 x 2-1/8"

1/2-20 X 2-1/8 HSFCHCS

2шт.

11

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

Выбрано товаров: 12
