Запчасти Case IH SC416 (3-02) - SWAYBAR ASSEMBLY, LEFT (09) - CHASSIS

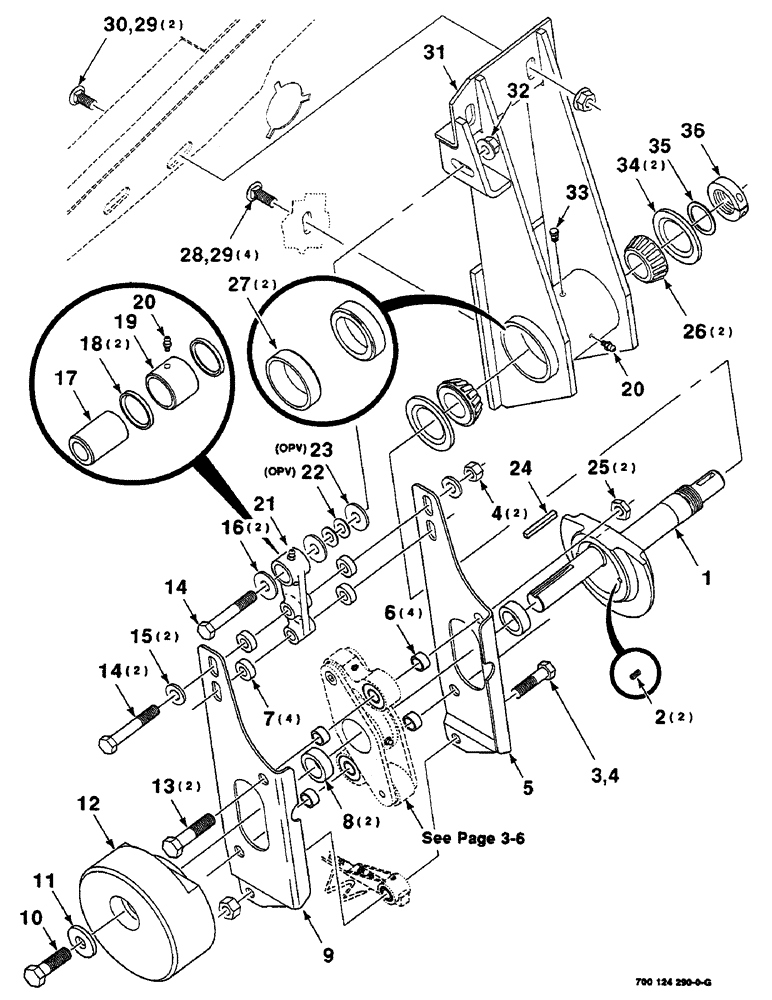

Схема запчастей Case IH SC416 - (3-02) - SWAYBAR ASSEMBLY, LEFT (09) - CHASSIS
9
36
2
5
35
18
14
31
16
33
17
20
22
32
29
25
34
12
14
24
26
21
13
29
27
28
6
3
4
15
20
19
1
11
7
23
10
8
30
4

Артикул

Название

Примечание

Количество

1

700124293

PINION

PITMAN ASSEMBLY (includes item 2)

1шт.

2

483-13812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

3/8-16 X 3/4 CPHSSS

2шт.

3

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

4

429-1010

NUT,5/8"-11, G8

3шт.

5

700124296

LARGE PLATE

SWAYBAR PLATE

1шт.

6

700124304

SPACER

4шт.

7

700124306

SPACER

4шт.

8

700124303

SPACER

2шт.

9

700124298

LARGE PLATE

SWAYBAR PLATE

1шт.

10

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

11

700114639

WASHER

1шт.

12

700136386

FLYWHEEL

1шт.

13

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

2шт.

14

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

5/8-11 X 3-3/4 C GR8

3шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

16

700119659

WASHER,16.66mm ID x 44.45mm OD x 6.35mm Thk

5/8 HARDENED WASHER

2шт.

17

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

- needle bearing

1шт.

18

697494R91

OIL SEAL

SEAL

2шт.

19

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

1шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

21

700114625

LINK

ASSEMBLY ( includes items 17, 18, 19 and 20)

1шт.

22

495-11066

WASHER,5/8", SAE

5/8 X 14 GAUGE WRMB

1шт.

23

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

1шт.

24

761312

KEY

5/16 X 2-1/2 STRAIGHT KEY

1шт.

25

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 J

2шт.

26

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

BEARING CONE

2шт.

27

170254R1

BEARING, CUP

BEARING CUP

2шт.

28

700709172

SQUARE BOLT

5/8-11 X 1-3/4 RHSNB GR8 NP

4шт.

29

7704919

FLANGE NUT,Flg, 5/8"-11, G8

5/8-11 HFN GR8

6шт.

30

700709171

SQUARE BOLT

5/8-11 X 1-1/4 RHSNB GR8 NP

2шт.

31

700114608

HOUSING

ASSEMBLY - left (includes item 27)

1шт.

32

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

33

152127H1

BREATHER,1/8"-27, Short

VENT PLUG

1шт.

34

700706454

SEAL

2шт.

35

33015

FILLER CAP

1-3/4 X 14 GAUGE NRMB

1шт.

36

700706453

COLLAR

THREADED CLAMP COLLAR

1шт.

Выбрано товаров: 36
