(2-32) - U-JOINT ASSY, LOWER, 700715726 U-JOINT ASSY COMPLETE, 14 FT., 700715727 U-JOINT ASSY COMPLETE, 16 FT

Запчасти Case IH SC416 (2-32) - U-JOINT ASSY, LOWER, 700715726 U-JOINT ASSY COMPLETE, 14 FT., 700715727 U-JOINT ASSY COMPLETE, 16 FT (09) - CHASSIS

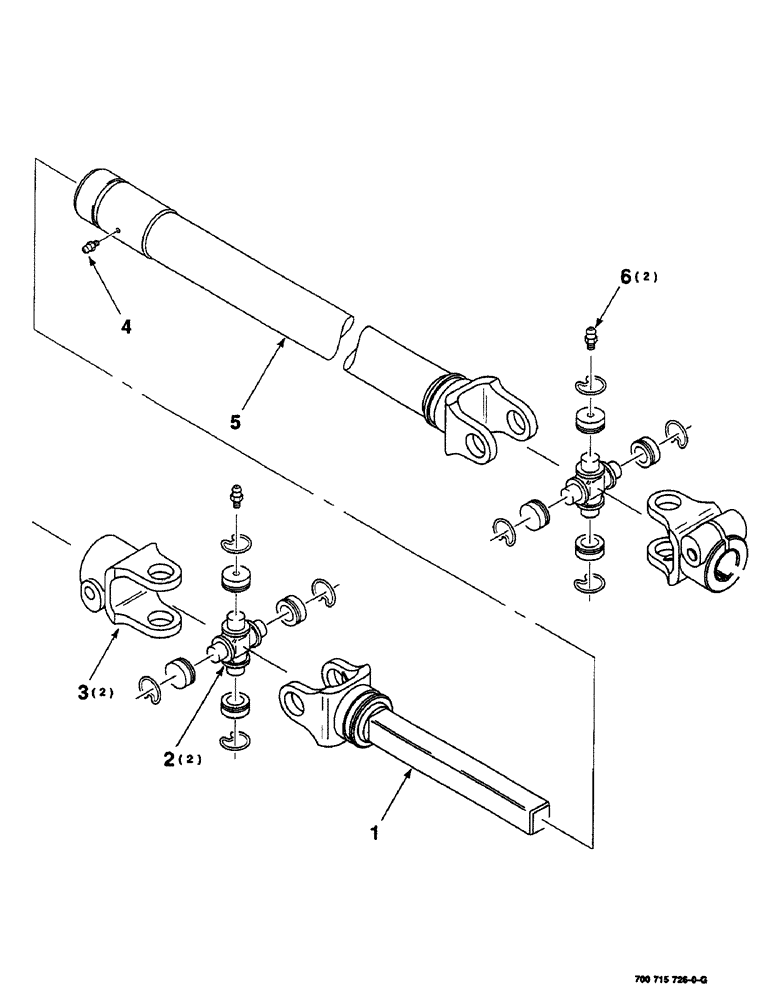

Схема запчастей Case IH SC416 - (2-32) - U-JOINT ASSY, LOWER, 700715726 U-JOINT ASSY COMPLETE, 14 FT., 700715727 U-JOINT ASSY COMPLETE, 16 FT (09) - CHASSIS
4
2
5
3
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700715726

UNIVERSAL JOINT

U-JOINT ASSEMBLY COMPLETE (14 foot)

1шт.

700715727

UNIVERSAL JOINT

U-JOINT ASSEMBLY COMPLETE (16 foot)

1шт.

1

700716409

LINKAGE YOKE

YOKE AND SHAFT

1шт.

2

700711843

FLEXIBLE JOINT

CROSS AND BEARING KIT (includes item 6)

2шт.

3

757716

CLAMP

YOKE

2шт.

4

219-425

LUBE NIPPLE,1/4" - 28

ZERK 1/4-28 X 9/16

1шт.

5

700716418

LINKAGE YOKE

SLIP YOKE (14 foot)

1шт.

700716422

LINKAGE YOKE

SLIP YOKE (16 foot)

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.
