(2-30) - U-JOINT ASSEMBLY, UPPER, 16 FOOT, 700715724 U-JOINT ASSEMBLY COMPLETE, 16 FOOT

Запчасти Case IH SC416 (2-30) - U-JOINT ASSEMBLY, UPPER, 16 FOOT, 700715724 U-JOINT ASSEMBLY COMPLETE, 16 FOOT (09) - CHASSIS

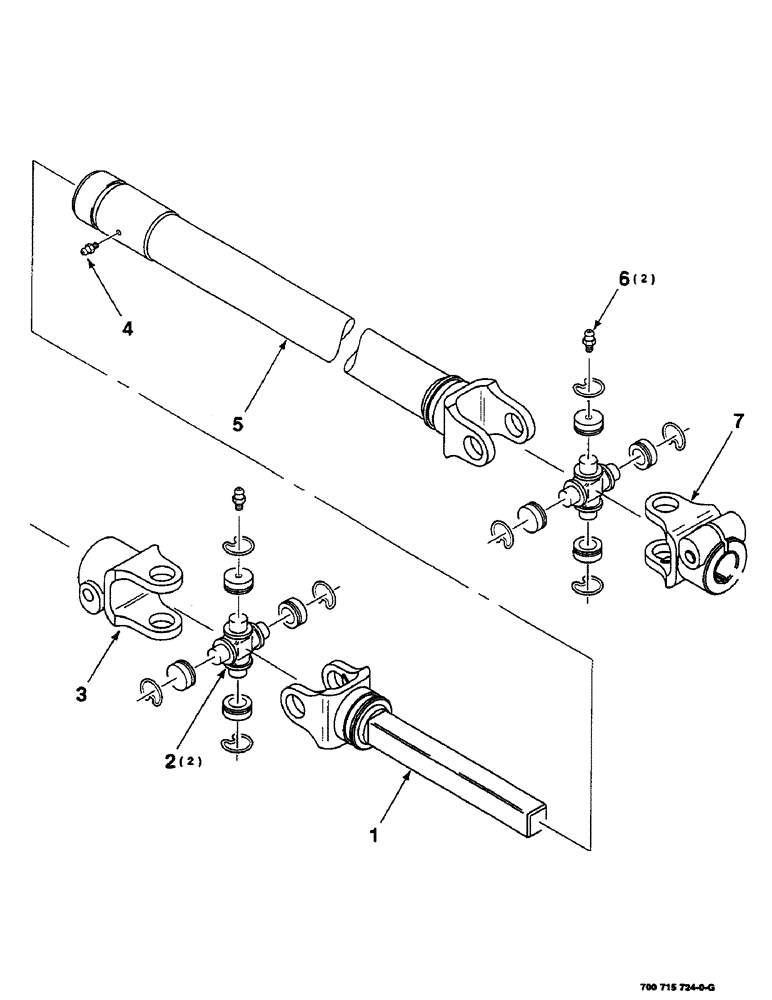

Схема запчастей Case IH SC416 - (2-30) - U-JOINT ASSEMBLY, UPPER, 16 FOOT, 700715724 U-JOINT ASSEMBLY COMPLETE, 16 FOOT (09) - CHASSIS
3
1
6
4
7
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700715724

UNIVERSAL JOINT

U-JOINT ASSEMBLY COMPLETE (16 foot)

1шт.

1

700716409

LINKAGE YOKE

YOKE AND SHAFT

1шт.

2

700711843

FLEXIBLE JOINT

CROSS AND BEARING KIT (includes item 6)

2шт.

3

757716

CLAMP

YOKE

1шт.

4

219-425

LUBE NIPPLE,1/4" - 28

ZERK 1/4-28 X 9/16

1шт.

5

700716410

LINKAGE YOKE

SLIP YOKE

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

7

700700842

LINKAGE YOKE

YOKE

1шт.
