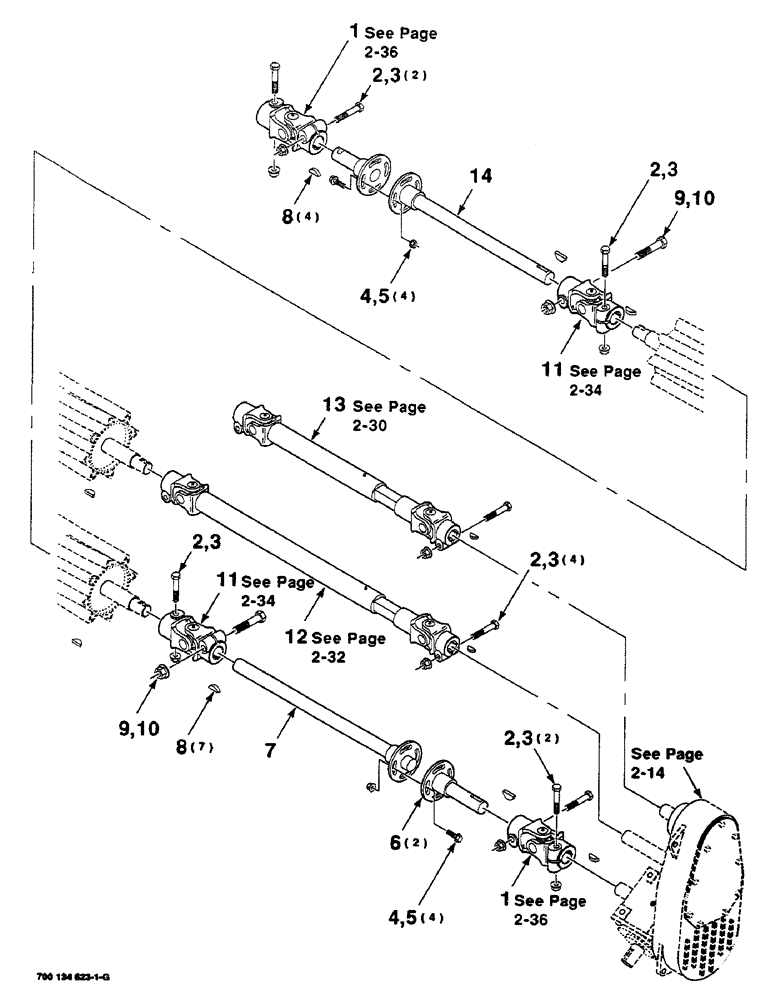

Запчасти Case IH SC416 (2-26) - DRIVE ASSEMBLY, 16 FOOT (09) - CHASSIS

1

700715720

UNIVERSAL JOINT

U-JOINT

2шт.

2

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

10шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

10шт.

4

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

8шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

6

700133248

SHAFT

WA

2шт.

7

700134829

SHAFT

WA - left

1шт.

8

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

11шт.

9

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

10

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

11

700715721

UNIVERSAL JOINT

U-JOINT

2шт.

12

700715727

UNIVERSAL JOINT

U-JOINT

1шт.

13

700715724

UNIVERSAL JOINT

U-JOINT

1шт.

14

700133251

SHAFT

WA - right

1шт.
