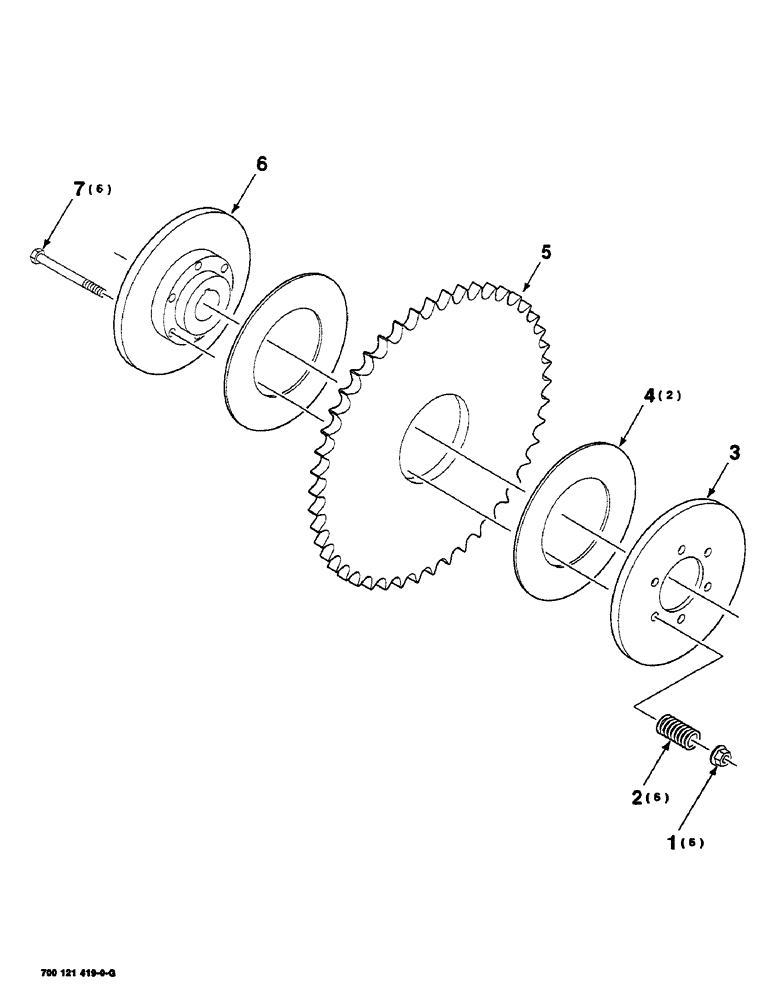

Запчасти Case IH SC416 (2-20) - SLIP CLUTCH ASSEMBLY (09) - CHASSIS

1

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

6шт.

2

58644

SPRING

- compression

6шт.

3

700121420

DISC

PLATE - clutch

1шт.

4

700711025

CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk

DISC - friction

2шт.

5

700120817

SPROCKET

- 50A45 tooth

1шт.

6

700121421

HUB

- clutch

1шт.

7

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16-18 X 3-1/4 C

6шт.
