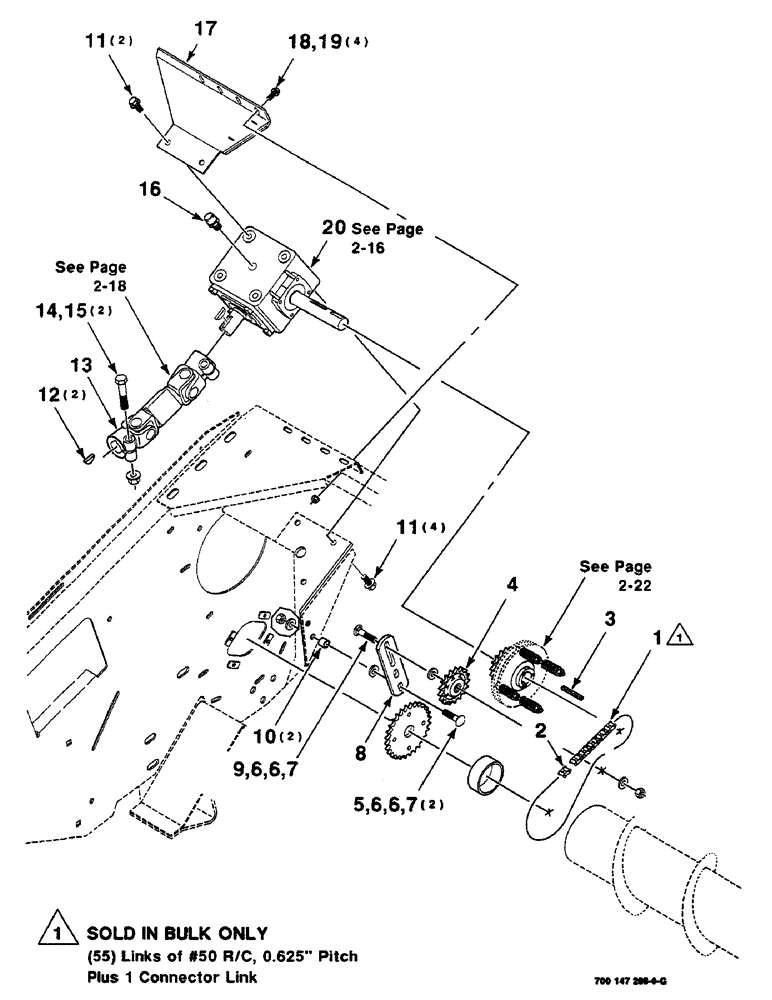

Запчасти Case IH SC416 (2-12) - AUGER DRIVE ASSEMBLY, RIGHT (09) - CHASSIS

1

700704752

CHAIN

- roller, o-ring #50 (10 foot bulk)

1шт.

2

700709539

LINK,15.88mm Pitch

CONNECTOR LINK, o-ring #50 (diamond)

1шт.

700702950

LINK

CONNECTOR LINK, o-ring #50 (daido)

1шт.

3

O5528N

KEY

1/4 X 2-1/2 STRAIGHT KEY

1шт.

4

7087398

DRIVE SPROCKET

SPROCKET - idler, 17 tooth

1шт.

5

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

2шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

6шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

8

700124907

STRAP

- idler mounting

1шт.

9

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

10

6214639

SPACER

2шт.

11

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

6шт.

12

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

13

700715713

UNIVERSAL JOINT

U-JOINT - shock absorber assembly

1шт.

14

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

15

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

16

700712886

BREATHER

1шт.

17

700134723

PANEL

- rear, right

1шт.

18

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

700715769

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.
