Запчасти Case IH SC416 (2-10) - AUGER DRIVE ASSEMBLY, LEFT (09) - CHASSIS

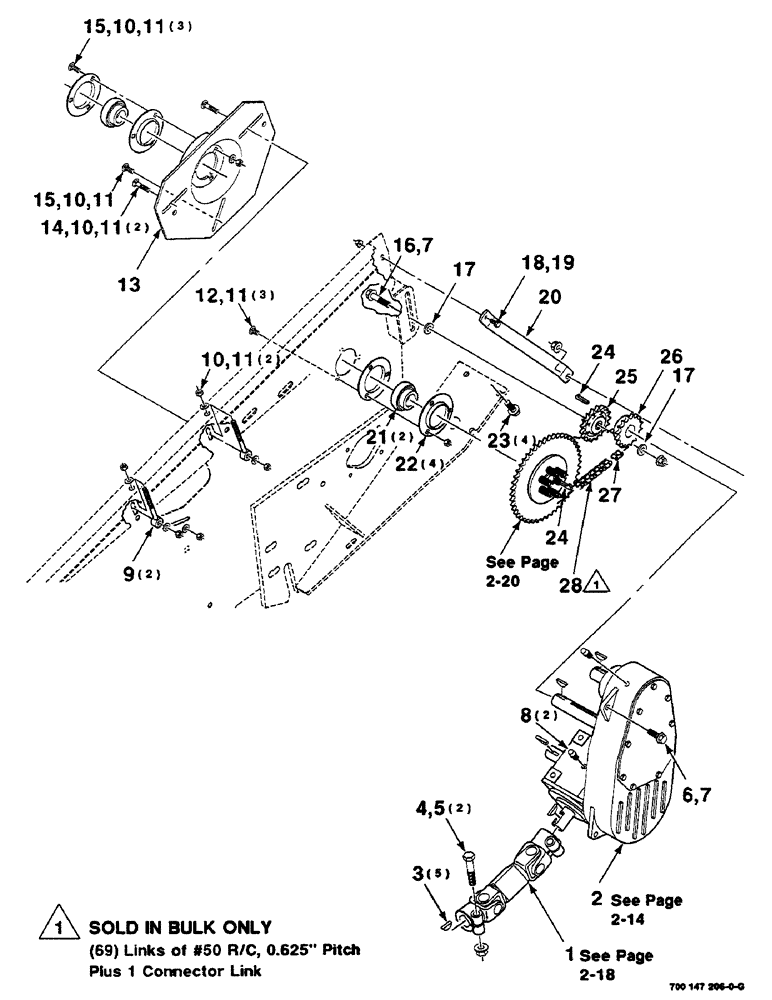

Схема запчастей Case IH SC416 - (2-10) - AUGER DRIVE ASSEMBLY, LEFT (09) - CHASSIS
13
11
7
15
17
4
27
11
1
22
24
21
17
10
16
20
6
24
7
11
10
26
18
12
11
28
3
19
8
9
2
15
5
11
23
10
10
14
25

Артикул

Название

Примечание

Количество

1

700715713

UNIVERSAL JOINT

U-JOINT - shock absorber assembly

1шт.

2

700718422

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

3

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

5шт.

4

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

5

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

6

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

1шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

8

700712886

BREATHER

2шт.

9

700110578

ROD

WA

2шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

11

425-106

NUT,3/8"-16, Cl 5

11шт.

12

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

13

700110586

LARGE PLATE

PLATE WA

1шт.

14

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

2шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

16

700712882

BOLT,Hex Flg, 1/2" - 13 x 2 1/4", Gr 8

1/2-13 X 2-1/4 HFS GR8

1шт.

17

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

18

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

19

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

20

700134710

SUPPORT

- gearbox

1шт.

21

13273

PLUG

BEARING - spherical

2шт.

22

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE

4шт.

23

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

4шт.

24

8932

HYDRAULIC CYLINDER

1/4 X 1-1/4 GIB KEY

2шт.

25

7087398

DRIVE SPROCKET

SPROCKET - idler, 50B17

1шт.

26

700708837

SPROCKET

- 50B16

1шт.

27

700709539

LINK,15.88mm Pitch

CONNECTOR LINK, o-ring #50 (diamond)

1шт.

700702950

LINK

CONNECTOR LINK, o-ring #50 (daido)

1шт.

28

700704752

CHAIN

- roller, o-ring #50 (10 foot bulk)

1шт.

Выбрано товаров: 29
