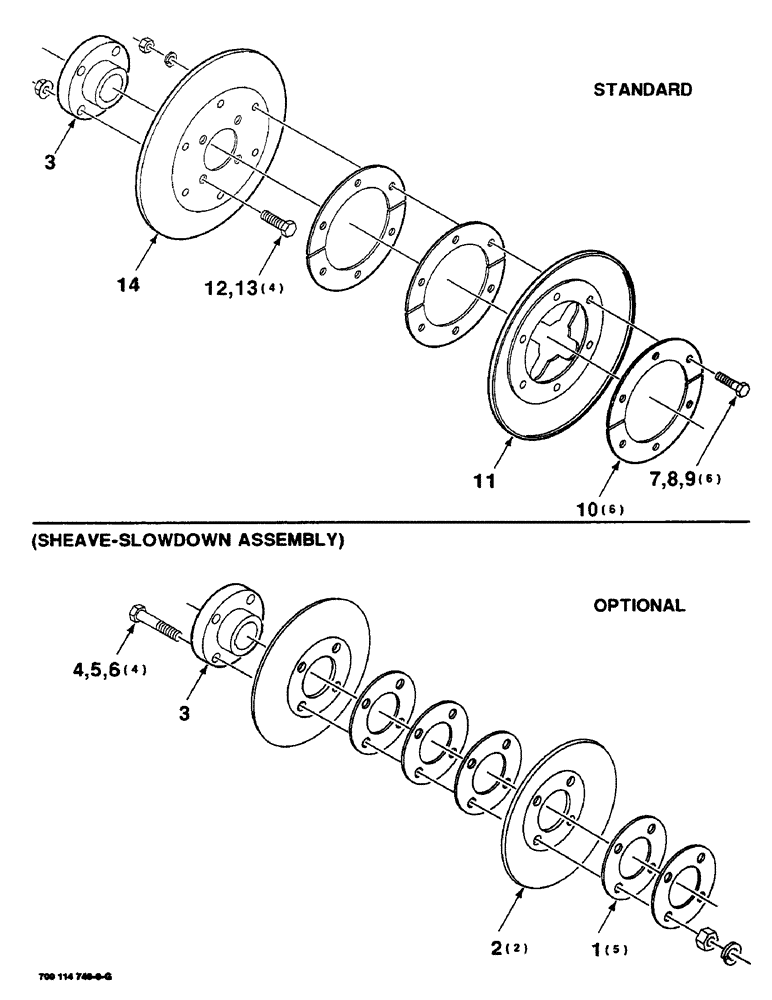

Запчасти Case IH SC416 (2-08) - SHEAVE ASSEMBLIES, SHEAVE SLOWDOWN ASSEMBLY (09) - CHASSIS

1

1661923

SHIM

SPACER - shim

5шт.

2

338244

SHEAVE

- half

2шт.

3

6574859

HUB

2шт.

4

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

6шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

425-105

NUT,5/16"-18, G5

6шт.

10

6181705

SHIM

- spacer

6шт.

11

2400026

SHEAVE

HALF

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

14

2400027

SHEAVE

HALF

1шт.
