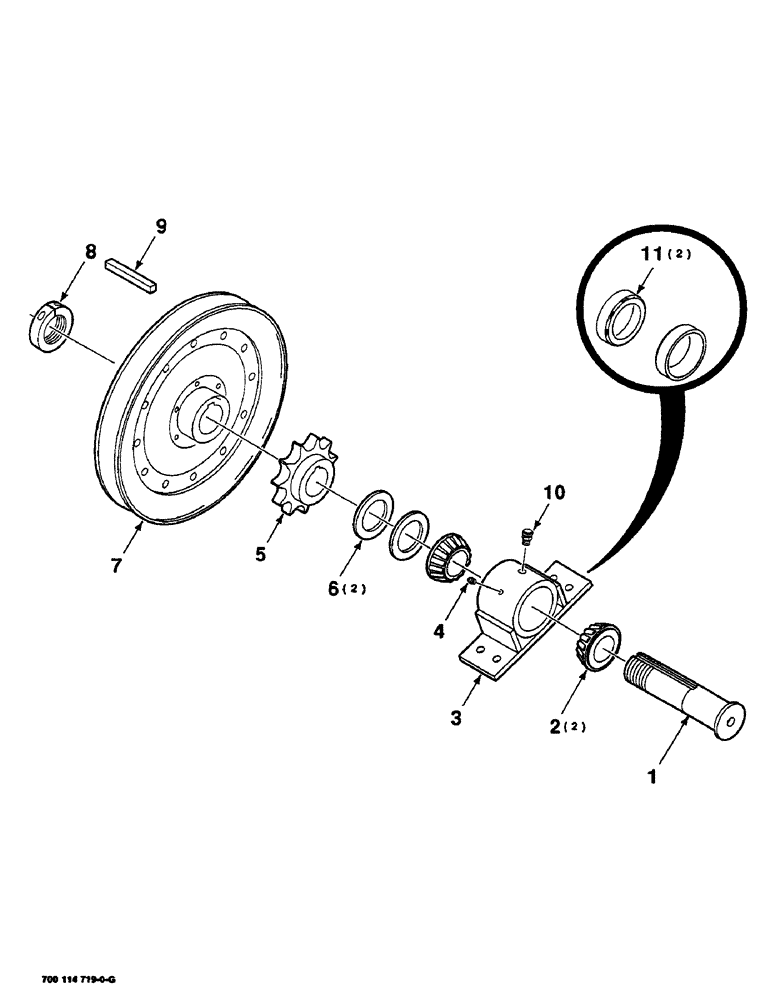

Запчасти Case IH SC416 (2-06) - REEL DRIVE JACKSHAFT ASSEMBLY (09) - CHASSIS

1

700114721

SHAFT

- reel, drive

1шт.

2

700711926

CONE

BEARING

2шт.

3

700114722

BEARING ASSY

HOUSING ASSEMBLY - bearing (includes item 11)

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

5

700706586

SPROCKET

- 60C 11 tooth

1шт.

6

8910

1-1/4 X 10 GAUGE NRMB

2шт.

7

700706588

PULLEY

SHEAVE

1шт.

8

700706600

COLLAR

- clamp, threaded

1шт.

9

43627

HYD CONNECTOR

1/4 X 1/4 X 2 KEY

1шт.

10

7792005

VENT

FITTING - relief

1шт.

11

651817R1

BEARING CUP

BEARING - cup

2шт.
