Запчасти Case IH SC416 (2-04) - CAM TRACK AND MOUNTING ASSEMBLY (09) - CHASSIS

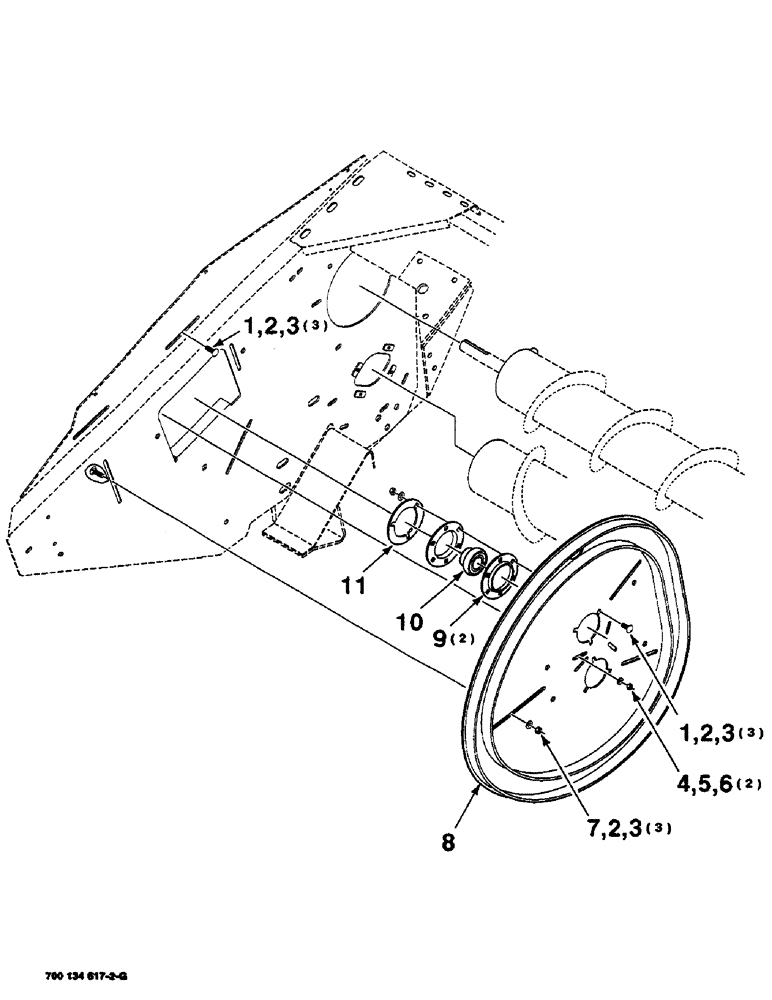

Схема запчастей Case IH SC416 - (2-04) - CAM TRACK AND MOUNTING ASSEMBLY (09) - CHASSIS
3
6
10
2
4
9
3
2
5
11
2
3
1
1
7
8

Артикул

Название

Примечание

Количество

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

9шт.

3

425-106

NUT,3/8"-16, Cl 5

9шт.

4

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

6

425-105

NUT,5/16"-18, G5

2шт.

7

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

3шт.

8

700120804

ECCENTRIC

CAMTRACK WA

1шт.

9

825620C1

RETAINER

- bearing

2шт.

10

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

1шт.

11

700117899

SHIM

1шт.

Выбрано товаров: 11
