(8-26) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, MASTER, 700712016 HYDRAULIC CYLINDER COMPLETE

Запчасти Case IH SC416 (8-26) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, MASTER, 700712016 HYDRAULIC CYLINDER COMPLETE (08) - HYDRAULICS

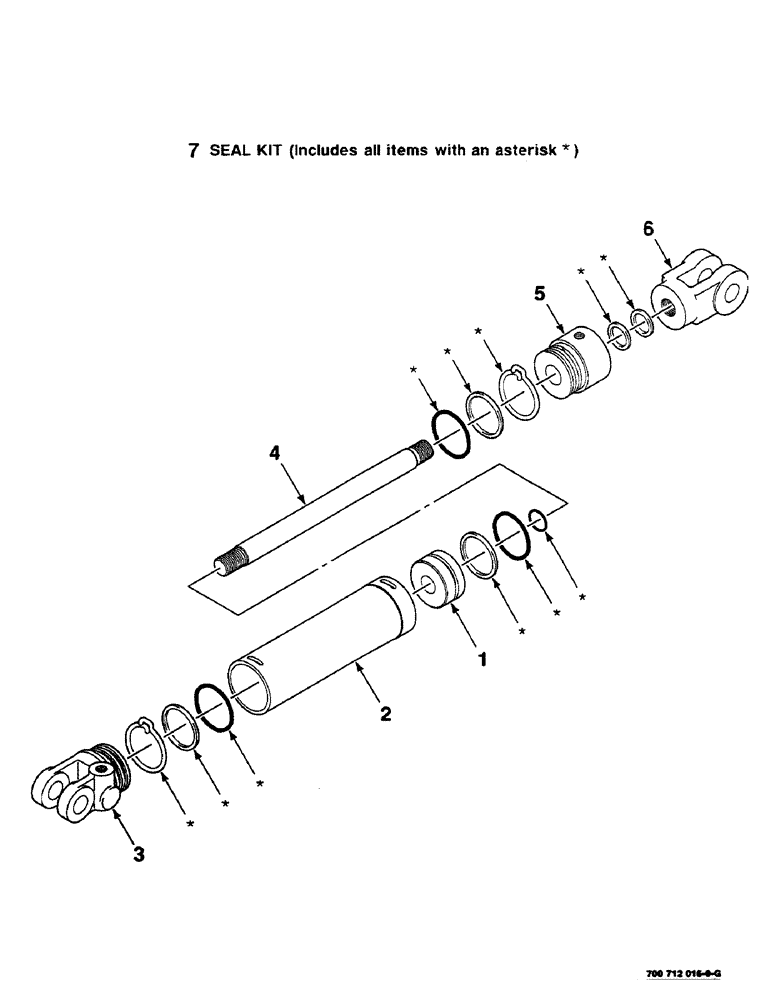

Схема запчастей Case IH SC416 - (8-26) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, MASTER, 700712016 HYDRAULIC CYLINDER COMPLETE (08) - HYDRAULICS
2
5
7
3
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712016

CYLINDER

HYDRAULIC CYLINDER COMPLETE (3-1/4" bore by 8" stroke)

1шт.

1

700710154

PISTON

- cylinder

1шт.

2

700712105

SLEEVE CYLINDER

BARREL

1шт.

3

700707662

HEAD

- cylinder

1шт.

4

700700100

ROD

- piston

1шт.

5

700712106

LIFT CYLINDER

BEARING - cylinder rod

1шт.

6

50-2079T1

END

CLEVIS - rod end

1шт.

7

700710155

SEAL PACKAGE

SEAL KIT

1шт.
