Запчасти Case IH SC416 (8-18) - HYDROSTATIC MOTOR ASSEMBLY, 700706977 HYDROSTATIC MOTOR ASSEMBLY COMPLETE (08) - HYDRAULICS

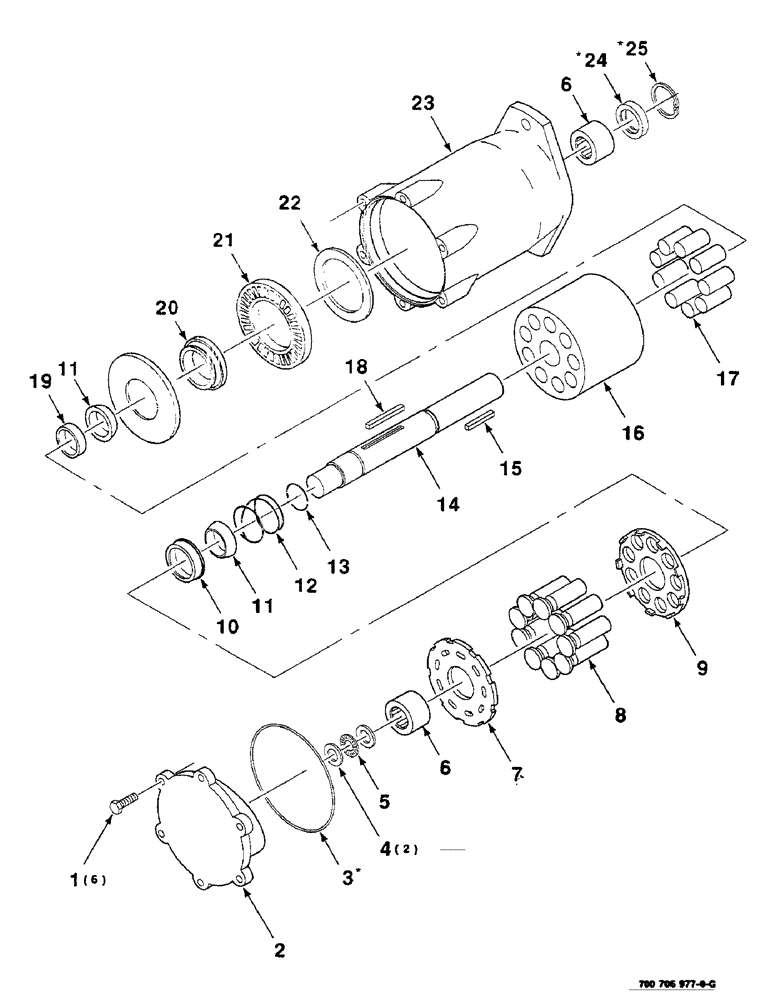

Схема запчастей Case IH SC416 - (8-18) - HYDROSTATIC MOTOR ASSEMBLY, 700706977 HYDROSTATIC MOTOR ASSEMBLY COMPLETE (08) - HYDRAULICS
18
16
20
6
22
17
11
24
4
10
7
5
9
2
13
11
21
15
8
3
25
14
12
6
23
19
1

Артикул

Название

Примечание

Количество

700706977

HYDRAULIC MOTOR

HYDROSTATIC MOTOR ASSEMBLY COMPLETE

1шт.

700728299R

REMAN-HYD MOTOR

SC414, SC416, Reman for New P/N 700706977

1шт.

700728299C

REMAN-HYD MOTOR

Return Number

1шт.

1

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

2

D80511

PLATE

BACK PLATE ASSEMBLY (includes item 6)

1шт.

3

D63333

WASHER, THRUST

THRUST RACE

1шт.

4

N9977

WASHER, THRUST

THRUST RACE

2шт.

5

D63334

THRUST BEARING,0.569" ID x 0.99" OD x 0.0781"

1шт.

6

D80554

NEEDLE BEARING CAGE

NEEDLE - bearing

2шт.

7

D63342

PLATE

CONNECTOR PLATE

1шт.

8

7035850

PISTON

TUBULAR PISTON REPAIR KIT (includes 9 pistons)

1шт.

9

D63339

LARGE PLATE

SPIDER

1шт.

10

D75512

TUBE

PILOT

1шт.

11

D63338

PIVOT

CONE

2шт.

12

D75822

SPRING

1шт.

13

D63346

RING

RETAINER RING

1шт.

14

700707327

SHAFT

DRIVE SHAFT

1шт.

15

7035967

KEY

1шт.

16

D63344

BLOCK

PISTON BLOCK

1шт.

17

7035843

PISTON

SOLID PISTON REPAIR KIT (includes 9 pistons)

1шт.

18

D63340

KEY

1шт.

19

D63341

BUSHING

SPACER

1шт.

20

D80508

RACE

PISTON RACE ASSEMBLY

1шт.

21

D63332

THRUST BEARING,2.267" ID x 3.845" OD x 0.375"

1шт.

22

D63331

BEARING WASHER,2.375" ID x 40613" OD x 0.156"

BEARING RACE

1шт.

23

D80510

HOUSING

ASSEMBLY (includes item 6)

1шт.

24

700707333

SEAL KIT

SEAL REPAIR KIT, includes items in art with an asterisk

1шт.

25

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

Выбрано товаров: 28
