Запчасти Case IH SC416 (8-14) - HYDROSTATIC PUMP, PTO, 1000 RPM, 700700711 HYDROSTATIC PUMP, PTO COMPLETE (08) - HYDRAULICS

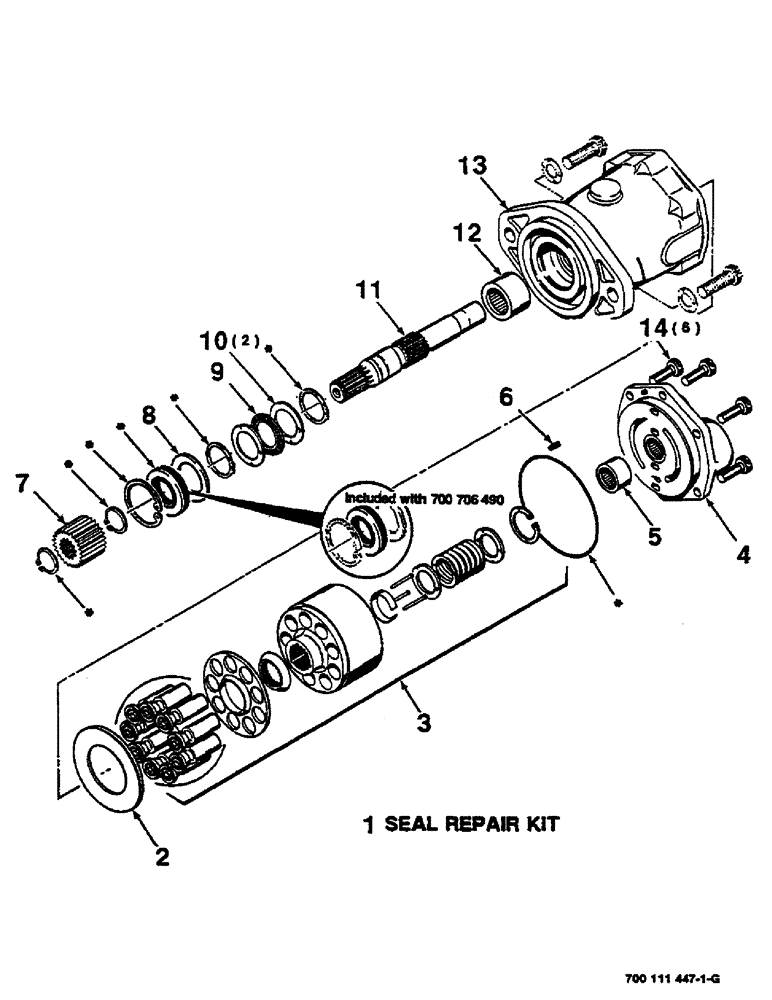

Схема запчастей Case IH SC416 - (8-14) - HYDROSTATIC PUMP, PTO, 1000 RPM, 700700711 HYDROSTATIC PUMP, PTO COMPLETE (08) - HYDRAULICS
4
8
1
12
6
13
14
3
5
7
11
9
10
2

Артикул

Название

Примечание

Количество

700700711

PUMP

HYDROSTATIC PUMP - pto complete (1000 rpm)

1шт.

1

700700710

SEAL KIT

REPAIR KIT, includes items in art marked with asterisk

1шт.

2

700700705

CAM

INSERT

1шт.

3

50-2801T1

CYLINDER

ROTATING PISTON REPAIR KIT

1шт.

4

700700706

LARGE PLATE

BACK PLATE ASSEMBLY (includes needle bearing)

1шт.

5

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - needle

1шт.

6

138-53

LOCK PIN,1/8" x 1/2", Slotted

Pin, 1/8" x 1/2", Slotted

1шт.

7

700700709

GEAR

- sun

1шт.

8

95-81147

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

1шт.

9

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust

1шт.

10

A52205

RACE,28.63mm ID x 44.2mm OD x 2.41mm Thk

THRUST RACE

2шт.

11

7037948

SHAFT

- drive

1шт.

12

7037195

NEEDLE BEARING

BEARING - needle

1шт.

13

700700704

HOUSING

ASSEMBLY (includes needle-bearing)

1шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

Выбрано товаров: 15
