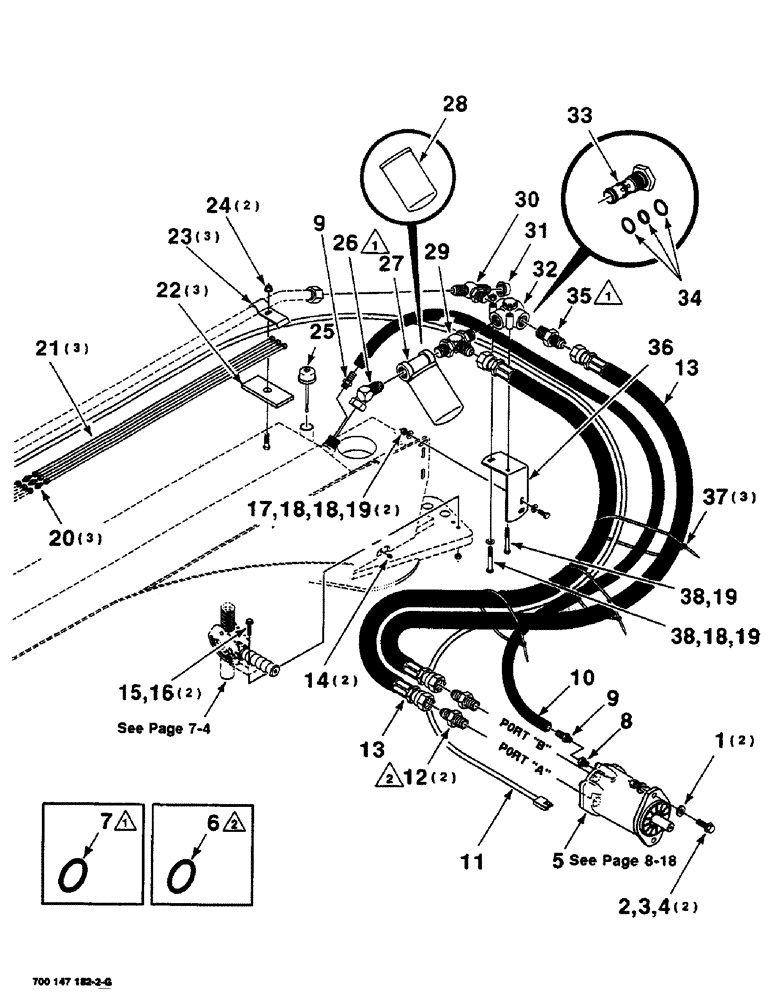

Запчасти Case IH SC414 (8-04) - HYDRAULIC DRIVE ASSEMBLY, SC414D, REAR (08) - HYDRAULICS

1

319558

SPACER

2шт.

2

121-433

FLANGE BOLT,Hex, 1/2" - 13 x 2", Gr 8

1/2-13 X 2 HFS GR8

2шт.

3

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

700706977

HYDRAULIC MOTOR

MOTOR ASSEMBLY - hydraulic

1шт.

700728299R

REMAN-HYD MOTOR

SC414, Reman for New P/N 700706977

1шт.

700728299C

REMAN-HYD MOTOR

Return Number

1шт.

6

738484

O-RING

1шт.

7

738476

O-RING

1шт.

8

218-5253

HYD CONNECTOR,9/16" - 18 ORB x 3/8" - 18 NPT

FITTING - swivel

1шт.

9

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

INSERT

2шт.

10

700717399

HYDRAULIC HOSE,0.38" ID x 90.55"

HOSE - hydraulic

1шт.

11

700717517

HARNESS

- wire, flasher

1шт.

12

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD. (Incl. item 6)

2шт.

13

700716505

HYDRAULIC HOSE,1.00" ID x 80.71", SAE 100R10, SAE J517 or SAE 100R12, SAE J516, SAE J343

HOSE - hydraulic

2шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

15

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

5/16-18 X 1-1/2 HWHMS

2шт.

16

425-105

NUT,5/16"-18, G5

2шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

846477

UNION

3шт.

21

700710157

TUBE,9.52 mm OD, 1130 mm Length

LINE - hydraulic

3шт.

22

700702496

PAD

3шт.

23

6232300

CLAMP

3шт.

24

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

25

6485924

DIPSTICK

1шт.

26

700710994

FITTING

(includes item 7)

1шт.

27

700710972

FILTER

ASSEMBLY (includes item 28)

1шт.

28

7033616

FILTER

ELEMENT - filter

1шт.

29

700710138

FITTING

- tee

1шт.

30

48987

WASHER

- tee

1шт.

31

218-758

CAP,37 Degree, 1 5/16"-12

1шт.

32

700707271

VALVE POPPET

VALVE - relief (includes items 33 and 34)

1шт.

33

700707363

VALVE

- relief assembly

1шт.

34

7037633

O-RING KIT

KIT

1шт.

35

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter (Incl. item 7)

1шт.

36

700121199

SUPPORT

1шт.

37

529070

CABLE TIE,368.3mm L

CABLE TIE

3шт.

38

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

2шт.
