(9-26) - CLOSE UP KIT, 14 FOOT, HK60928 CLOSE UP KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY

Запчасти Case IH SC414 (9-26) - CLOSE UP KIT, 14 FOOT, HK60928 CLOSE UP KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

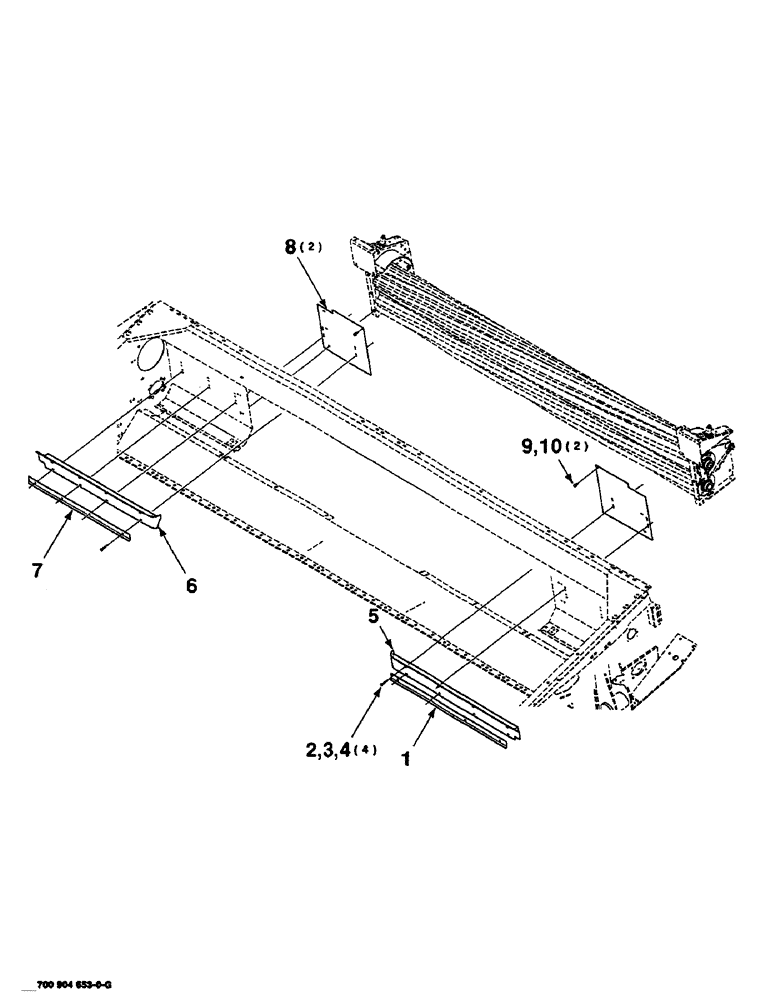

Схема запчастей Case IH SC414 - (9-26) - CLOSE UP KIT, 14 FOOT, HK60928 CLOSE UP KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS
9
5
8
1
3
10
2
4
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK60928

CLOSE UP KIT (14 FOOT)

1шт.

1

700124226

ANGLE

STRIPPER LEFT

1шт.

2

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

4шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

4

425-105

NUT,5/16"-18, G5

4шт.

5

700147319

STRIPPER

WA - left

1шт.

6

700147321

STRIPPER

WA - right

1шт.

7

700124227

ANGLE

- stripper right

1шт.

8

700124213

SHIM

2шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.
