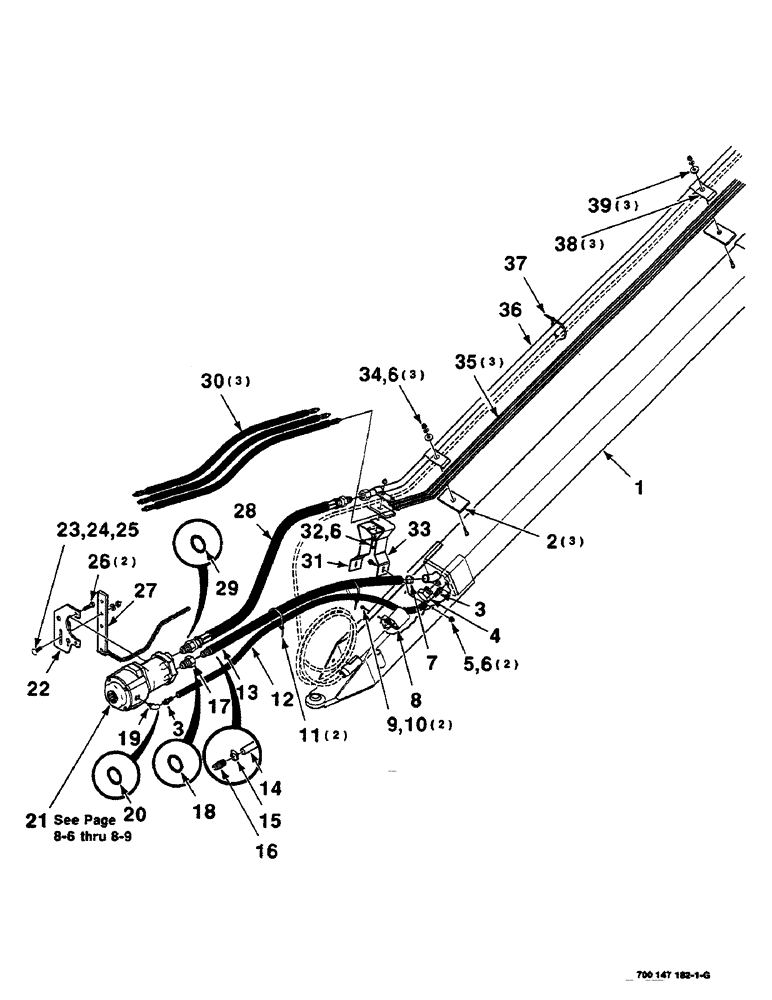

Запчасти Case IH SC414 (8-02) - HYDRAULIC DRIVE ASSEMBLY, SC414D, FRONT (08) - HYDRAULICS

1

700147252

TOW BAR

TONGUE WA - SC414D

1шт.

2

700702496

PAD

3шт.

3

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

INSERT

2шт.

4

8746117

PLUG

1шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

7

700706943

CLAMP

- hose

1шт.

8

183727C1

CAP

- plug

1шт.

9

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

7021728

STRAP

CABLE TIE

2шт.

12

843367

HYDRAULIC HOSE,0.38" ID x 58.00"

HOSE - hydraulic

1шт.

13

700707321

HOSE ASSY.

HOSE - hydraulic (includes items 14, 15 and 16)

1шт.

14

700707320

HOSE

- hydraulic

1шт.

15

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

1шт.

16

8046005

NIPPLE, LUBE

NIPPLE - barbed

1шт.

17

7746076

ADAPTER

CONNECTOR (includes item 18)

1шт.

18

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

19

7791916

ELBOW

- 90 degrees (includes item 20)

1шт.

20

738468

O-RING

1шт.

21

700712136

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic (540 rpm)

1шт.

21

700712138R

REMAN-GEARBOX

Reman For New PN 700712136

1шт.

21

700712138C

CORE-GEARBOX

Return Number

1шт.

277624R

REMAN-HYD PUMP

SC414, Reman For New P/N 700712136

1шт.

277624C

CORE-HYDRAULIC PUMP

Return Number

1шт.

22

1661987

SUPPORT

WA

1шт.

23

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

1шт.

24

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

27

1661984

ARM

ASSEMBLY - torque

1шт.

28

7872070

HOSE,25.4mm ID x 1092.2mm L, SAE 100R12

- hydraulic (includes item 29)

1шт.

29

738476

O-RING

1шт.

30

700700568

HOSE

- hydraulic

3шт.

31

700147277

SUPPORT

- line

1шт.

32

700711132

BOLT

3/8-16 X 2 HFS GR8

1шт.

33

700147276

SUPPORT

- line

1шт.

34

495-21044

WASHER,3/8"

3шт.

35

700717159

TUBE,9.52 mm OD, 3879, 210 mm Length

LINE - hydraulic

3шт.

36

700710963

TUBE

LINE - hydraulic

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

38

700115334

CLAMP

3шт.

39

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING - rubber

3шт.
