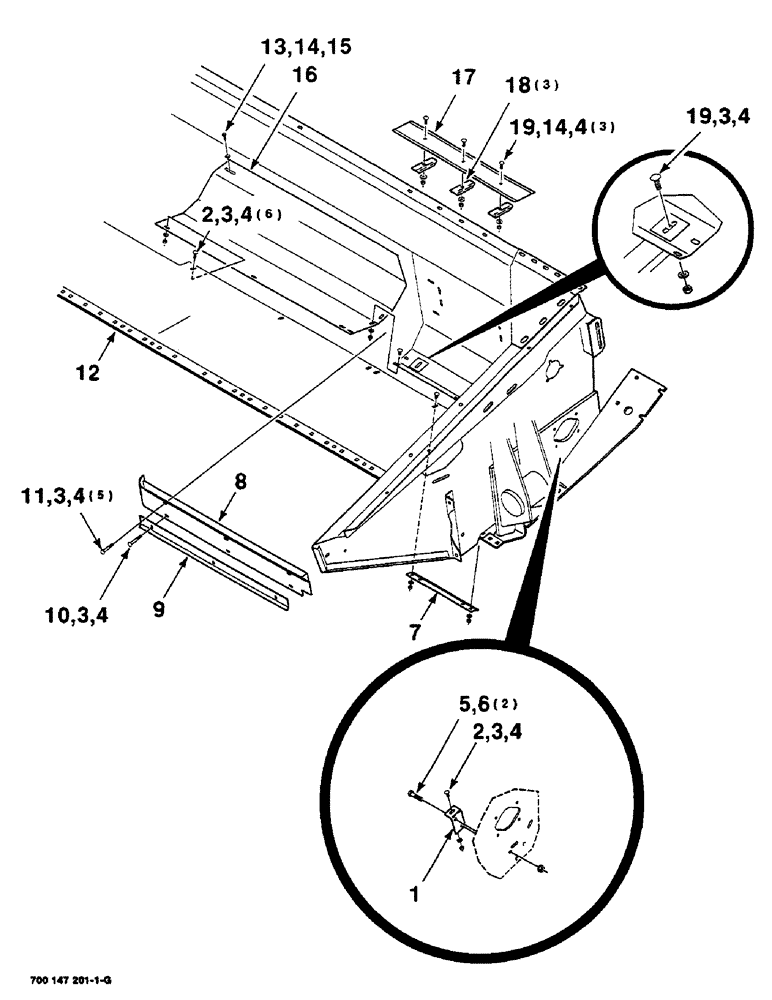

Запчасти Case IH SC414 (7-30) - AUGER PAN AND STRIPPER ASSEMBLIES LEFT, 14 FOOT (09) - CHASSIS

1

700124318

ANGLE

- left

1шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

7шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

14шт.

4

425-105

NUT,5/16"-18, G5

17шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

7

700136371

STRAP

- retainer

1шт.

8

700134686

STRIPPER

WA - left 14 foot

1шт.

9

700109703

ANGLE

- stripper, left

1шт.

10

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

1шт.

11

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

5шт.

12

700134645

BRACE

HEADER WA - 14 foot

1шт.

13

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

14

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

4шт.

15

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

16

700124320

PAN

- auger, left

1шт.

17

700136373

PAN

- filler

1шт.

18

700136368

CLIP

- retainer

3шт.

19

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

4шт.
