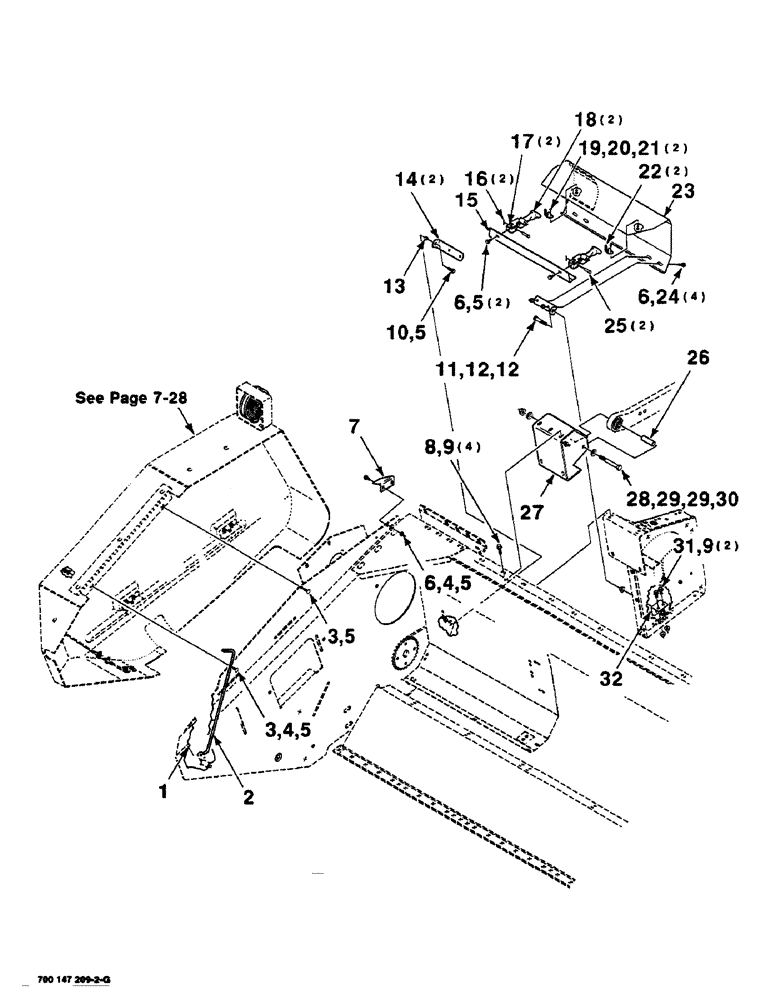

Запчасти Case IH SC414 (7-24) - SHIELD ASSEMBLY, RIGHT, 14 FOOT (09) - CHASSIS

1

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

2

700134880

ROD

- hanger

1шт.

3

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

4

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

7шт.

7

700134864

SUPPORT

- shield, right

1шт.

8

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

4шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

10

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

11

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

1шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

13

6124259

BUSHING

1шт.

14

700110705

SUPPORT

- shield

2шт.

15

700134828

SUPPORT

- shield

1шт.

16

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

17

776674

SUPPORT

BRACKET - anchor

2шт.

18

494307C1

LATCH

HOOK - rubber

2шт.

19

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS

2шт.

20

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21

225-14110

NUT,#10-24

2шт.

22

8722910

BRACKET

2шт.

23

700147295

SHIELD

- right

1шт.

24

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

25

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

2шт.

26

700115151

SPACER

1шт.

27

700147227

CHANNEL

WA - mounting

1шт.

28

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

1шт.

29

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

30

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

31

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

32

700114779

BRACKET

MOUNTING - pivot

1шт.
