(2-28) - U-JOINT ASSEMBLY, UPPER, 14 FOOT, 700715723 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH SC414 (2-28) - U-JOINT ASSEMBLY, UPPER, 14 FOOT, 700715723 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS

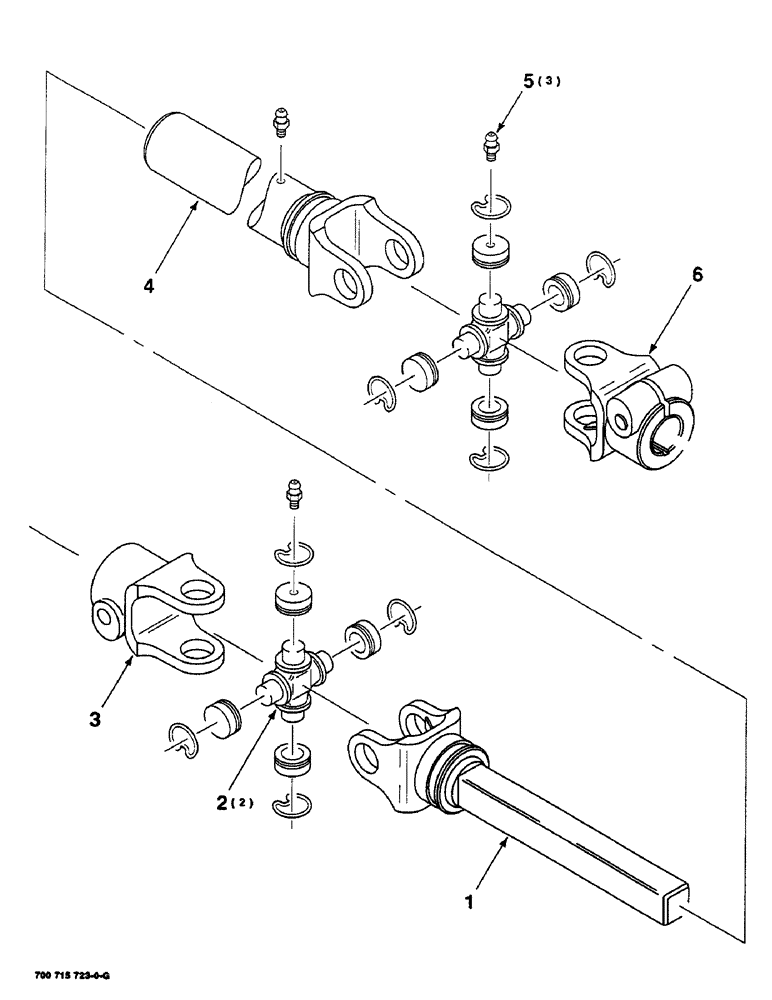

Схема запчастей Case IH SC414 - (2-28) - U-JOINT ASSEMBLY, UPPER, 14 FOOT, 700715723 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS
3
1
4
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700715723

UNIVERSAL JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

1

700716419

LINKAGE YOKE

YOKE AND SHAFT

1шт.

2

700711843

FLEXIBLE JOINT

CROSS AND BEARING KIT (includes item 5)

2шт.

3

757716

CLAMP

YOKE

1шт.

4

700716420

LINKAGE YOKE

SLIP YOKE

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

3шт.

6

700700842

LINKAGE YOKE

YOKE

1шт.
