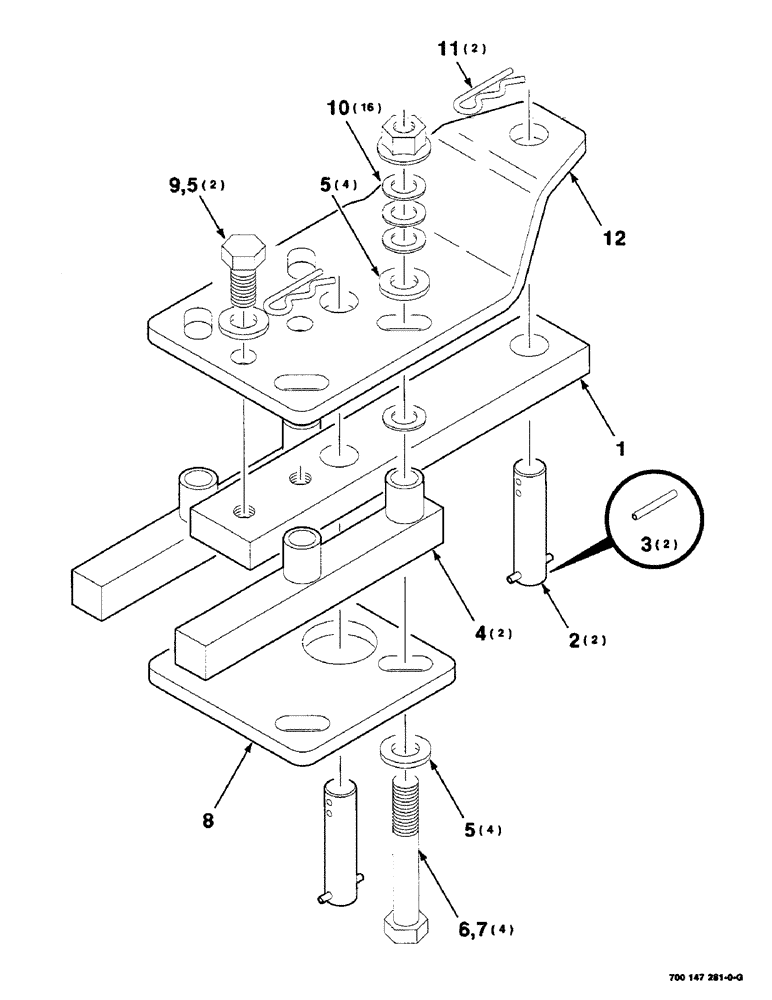

Запчасти Case IH SC414 (9-20) - DRAWBAR EXTENSION KIT, (HK60978 DRAWBAR EXTENSION KIT COMPLETE-TO BE ORDERED THRU WHOLEGOODS ONLY) (09) - CHASSIS

HK60978

DRAWBAR EXTENSION KIT COMPLETE

1шт.

1

700147282

EXTENSION

- draw bar

1шт.

2

700147286

PIN

ASSEMBLY

2шт.

3

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

2шт.

4

700147310

RAIL

WA

2шт.

5

705566

WASHER

3/4 HARDENED PLAIN WASHER

10шт.

6

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

7

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

4шт.

8

700147284

PLATE

- lower

1шт.

9

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4-10 X 1-1/2 C

2шт.

10

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GAUGE NRMB

16шт.

11

T40222

SPLIT PIN/SAFETY PIN

.243 WIRE HAIR PIN COTTER

2шт.

12

700147283

PLATE

- upper

1шт.
